Coude mural S-Press PLUS Uponor L avec filétage femelle
Coude mural S-Press PLUS Uponor L avec filétage femelle
Coude mural S-Press PLUS Uponor L avec filétage femelle

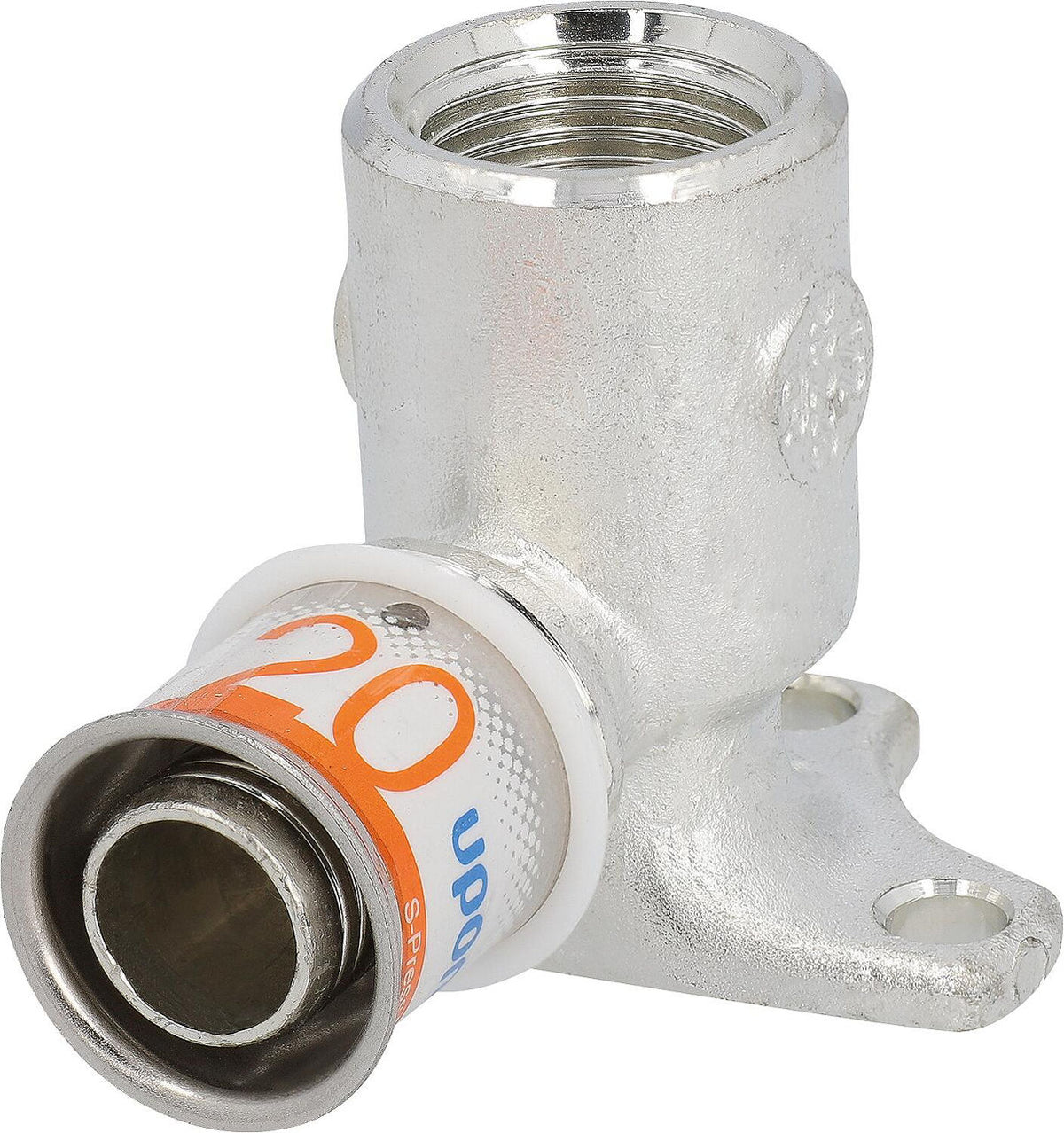

Uponor S-Press PLUS Wall elbow L with female thread

CHF 19.75 - CHF 22.65
/
Tax included

Select an option to add this to your cart.

Uponor S-Press PLUS angled wall elbow with female thread, ideal for sanitary and heating connections. High-performance crimping system supporting up to 70°C/10 bar in potable water and 80°C/10 bar in heating. Reliable and quick installation for professionals.

Features

  • Uponor S-Press PLUS crimp system for sanitary and heating
  • Potable water: max. temperature 70°C, max. pressure 10 bar
  • Heating water: max. temperature 80°C, max. pressure 10 bar
  • Angled wall elbow with integrated female thread
  • Quick and secure crimp installation
  • Compatible with Uponor pipes Ø16mm and Ø20mm
  • Female thread DN15 (1/2")

Technical data

Number of connections 2
Brand Uponor
Surface protection tinned
Connection 1 Pressed sleeve
Shape articulation
DVGW seal Yes
Suitable for potable water according to UBA positive list Yes
Connection 2 internal thread
Dimensions Ø16 mm - 1/2" : 16 x 2.0 mm – DN 15 (1/2") · Ø20 mm - 1/2" : 20 x 2.25 mm – DN 15 (1/2")
Length [mm] Ø16 mm - 1/2" : 42 · Ø20 mm - 1/2" : 46
Design 1 piece
Max. fluid temperature (continuous operation) [°C] 80
Flat gasket No
Tapered No
Max. working pressure [bar] 10
Available variants
  • SKU 90 177 94 : Ø16 mm - 1/2"
  • SKU 90 177 95 : Ø20 mm - 1/2"
Datasheets
Coude mural S-Press PLUS Uponor L avec filétage femelle
Uponor S-Press PLUS Wall elbow L with female thread
CHF 19.75 - CHF 22.65
Coude mural S-Press PLUS Uponor L avec filétage femelle
Ø16 mm - 1/2" 90 177 94
CHF 19.75 /each
Coude mural S-Press PLUS Uponor L avec filétage femelle
Ø20 mm - 1/2" 90 177 95
CHF 22.65 /each
