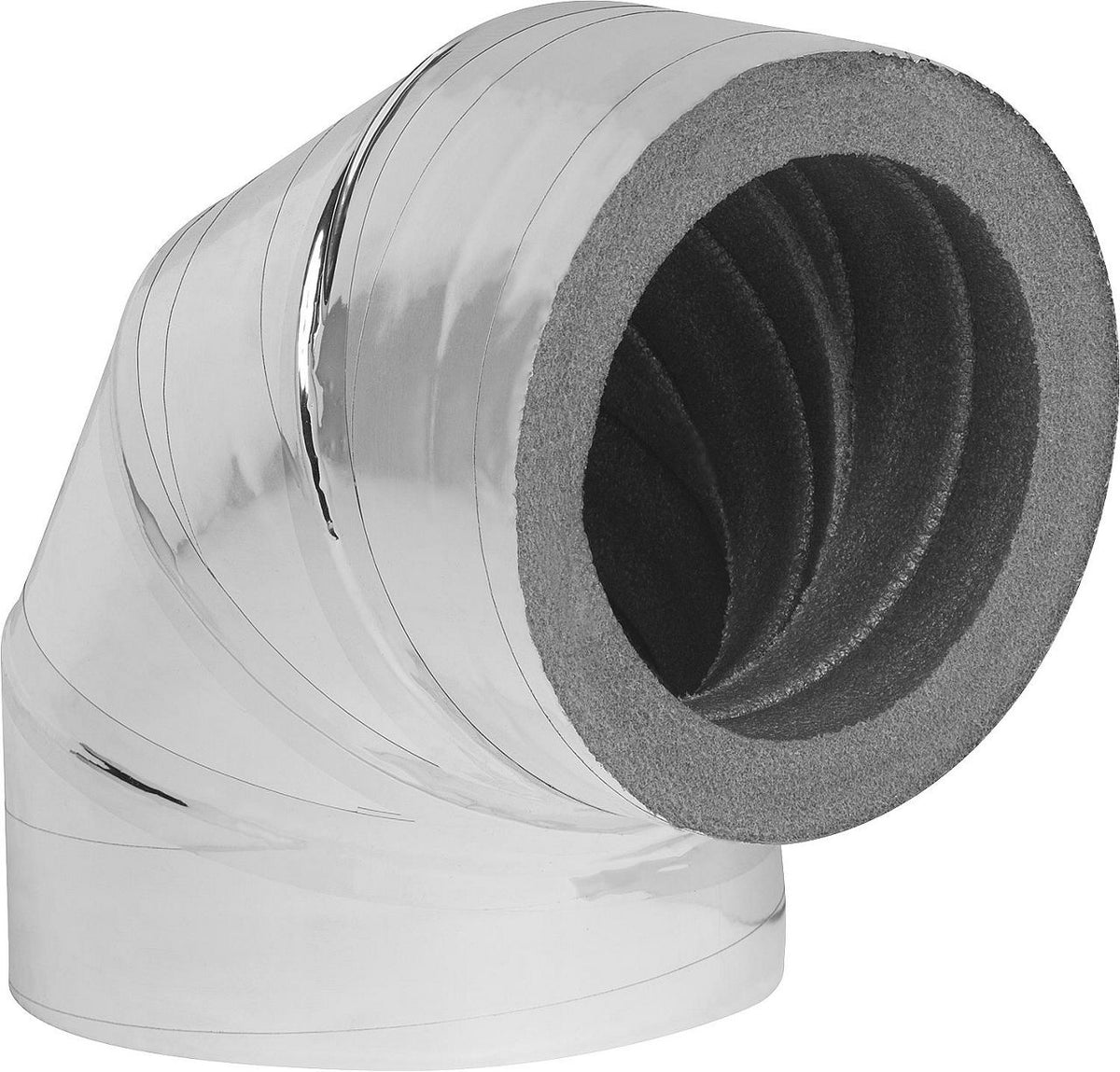

Coude isolé 90° Isoflexa avec revêtement aluminium, isolation 20 mm
Coude isolé 90° Isoflexa avec revêtement aluminium, isolation 20 mm
Coude isolé 90° Isoflexa avec revêtement aluminium, isolation 20 mm

90° Isoflexa Insulated Elbow with Aluminum Casing, 20 mm Insulation

CHF 29.65 - CHF 50.55
/
Tax included

Select an option to add this to your cart.

Description

  • Diffusion-tight, aluminium-coated expanded polyethylene pipe for versatile use in ventilation technology, for example as an exhaust air and outdoor air system, or as an air supply and exhaust pipe for heating and ventilation systems, heat pumps, kitchen exhaust, etc.
  • Tight and simple connection via connector with lip seal and aluminum adhesive tape
  • High thermal and sound insulation
  • High protection against condensation water
  • Ozone and UV resistant
  • Meets the requirements of DIN 1946-6, VDI 6022
  • Insulation thickness: 20 mm
  • Foam pipe material: Extruded PE, biobutane
  • Coating material: Aluminum/PET
  • Thermal conductivity: 0.038 W/mK
  • Operating temperature: -30 °C to +80 °C
  • Fire class: DIN 4102-1, flame retardant
Available variants
Model Reference
Nominal diameter 100 mm 98 020 20
Nominal diameter 150 mm 98 012 16
Nominal diameter 160 mm 98 012 17
Nominal diameter 200 mm 98 016 94
Technical Data Sheets
Coude isolé 90° Isoflexa avec revêtement aluminium, isolation 20 mm
90° Isoflexa Insulated Elbow with Aluminum Casing, 20 mm Insulation
CHF 29.65 - CHF 50.55
Nominal diameter 100 mm 98 020 20
CHF 29.65 /each
Nominal diameter 150 mm 98 012 16
CHF 34.60 /each
Nominal diameter 160 mm 98 012 17
CHF 35.40 /each
Nominal diameter 200 mm 98 016 94
CHF 50.55 /each
