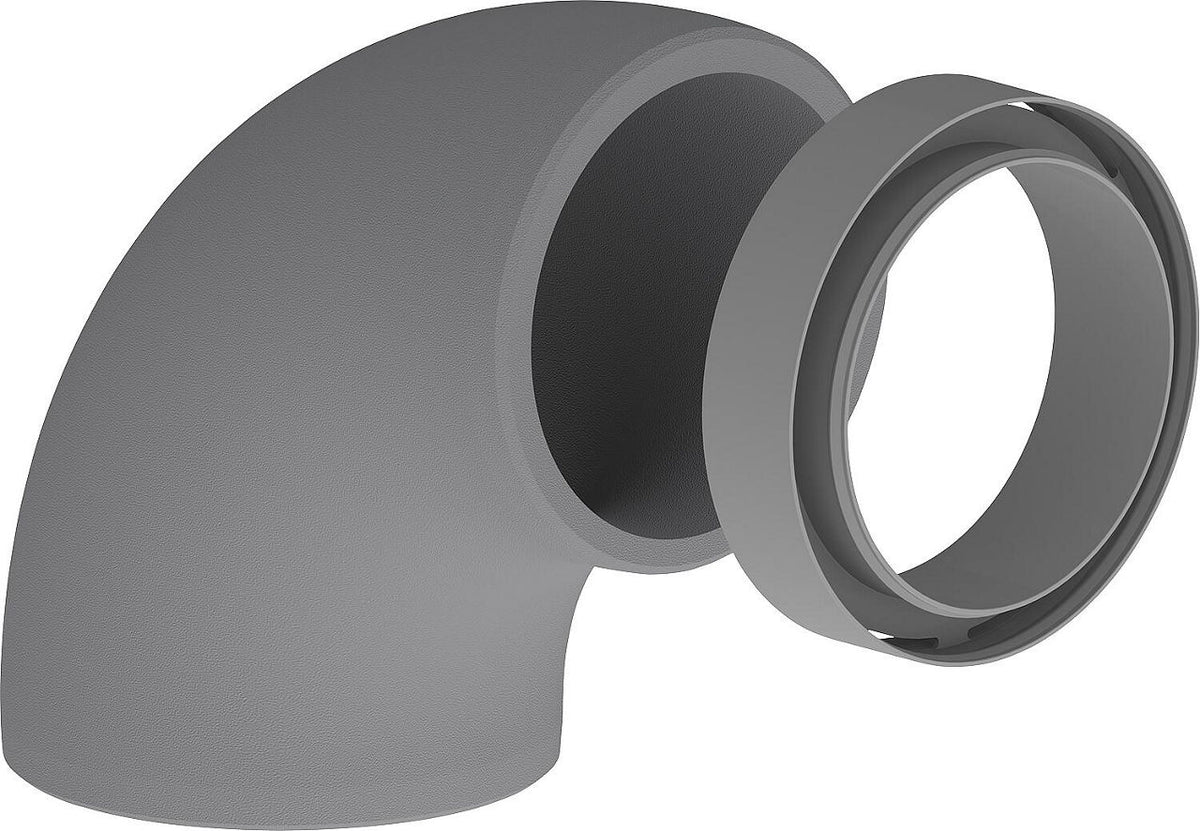

Coude isolé 90° Blauberg BlauFast IsoSys, EPS
Coude isolé 90° Blauberg BlauFast IsoSys, EPS
Coude isolé 90° Blauberg BlauFast IsoSys, EPS

90° insulated elbow Blauberg BlauFast IsoSys, EPS

CHF 30.65 - CHF 32.75
/
Tax included

Select an option to add this to your cart.

Description

  • Ducting system manufactured for connecting exhaust air and outdoor air as well as supply and extract air between the ventilation unit and the air distributor.
  • Simple and easy installation
  • For volumetric flow rates:
  • DN 125: up to max. 275 m³/h
  • DN 160: up to max. 425 m³/h
  • Air tightness class: 2
  • Insulation thickness: 15.5 mm
  • Thermal conductivity: 0.032 (W/mK)
  • Operating temperatures: -25°C to +80°C
  • Material: EPS
  • Connector included

Technical Data

Insulated Yes
Available versions
Model Item No.
Nominal diameter 125 mm 98 020 99
Nominal diameter 160 mm 98 020 98
Data sheets
Coude isolé 90° Blauberg BlauFast IsoSys, EPS
90° insulated elbow Blauberg BlauFast IsoSys, EPS
CHF 30.65 - CHF 32.75
Nominal diameter 125 mm 98 020 99
CHF 30.65 /each
Nominal diameter 160 mm 98 020 98
CHF 32.75 /each
