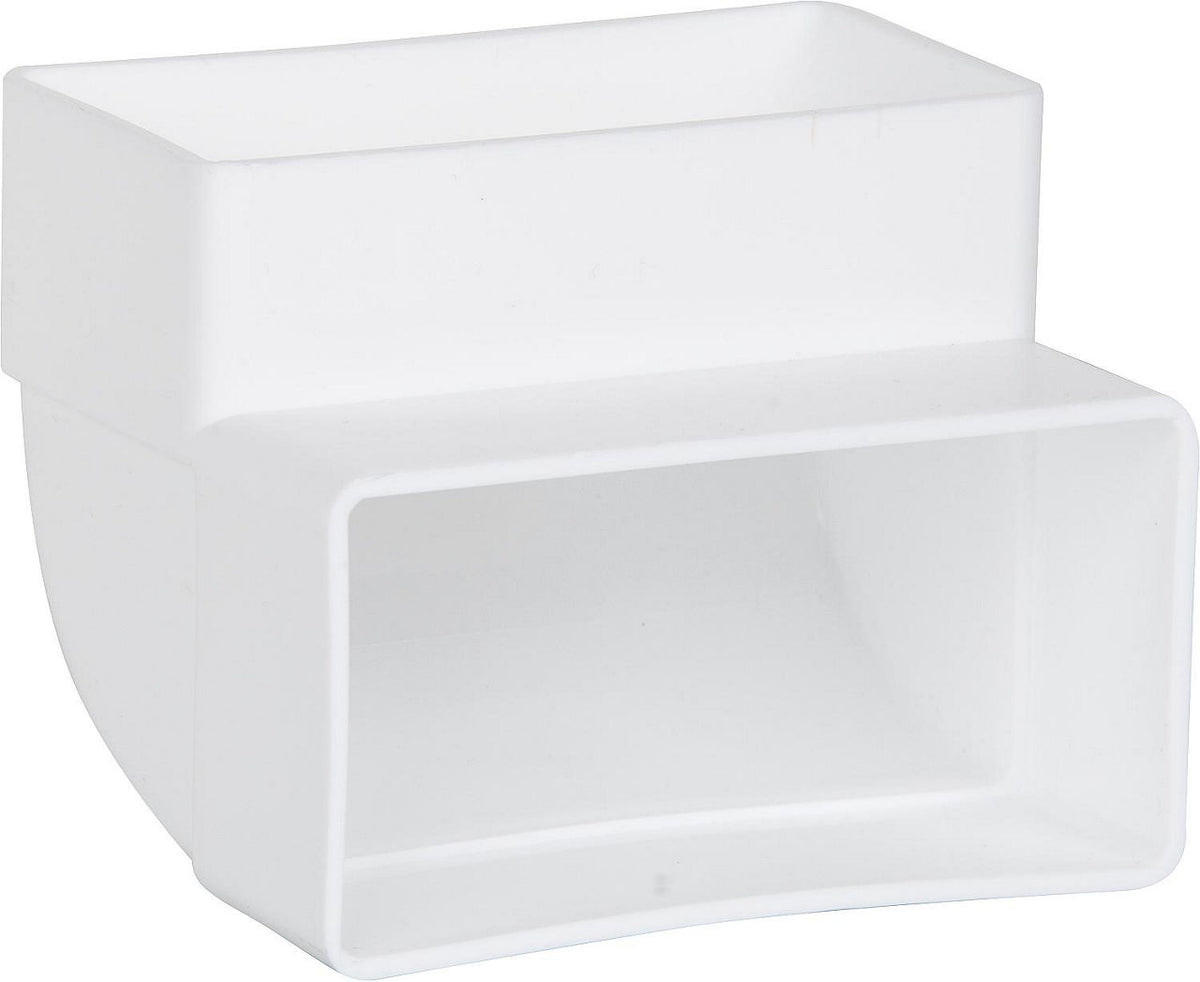

Coude 90° vertical Upmann pour tube plat
Coude 90° vertical Upmann pour tube plat
Coude 90° vertical Upmann pour tube plat

Upmann 90° vertical elbow for flat duct

CHF 12.90 - CHF 39.80
/
Tax included

Select an option to add this to your cart.

Technical data

Material plastic
Material quality PP
Connector 1 Push-fit sleeve
Connector 2 Push-fit sleeve
Max. fluid temperature [°C] 90
Insulation thickness [mm] 2
Available variants
Model Dimensions (W x H) [mm] Flow rate [m³/h] Reference
Nominal diameter 100 mm · Bend angle 90° 110 x 53 300 98 004 68
Nominal diameter 125 mm · Bend angle 90° 152 x 70 600 98 004 83
Nominal diameter 150 mm · Bend angle 90° 220 x 90 1200 98 004 96
Datasheets
Coude 90° vertical Upmann pour tube plat
Upmann 90° vertical elbow for flat duct
CHF 12.90 - CHF 39.80
Nominal diameter 100 mm · Elbow angle 90° 98 004 68
CHF 12.90 /each
Nominal diameter 125 mm · Elbow angle 90° 98 004 83
CHF 21.30 /each
Nominal diameter 150 mm · Bend angle 90 ° 98 004 96
CHF 39.80 /each
