Coude 90° pour réservoir de chasse d'eau evenes multicouche
Coude 90° pour réservoir de chasse d'eau evenes multicouche
Coude 90° pour réservoir de chasse d'eau evenes multicouche

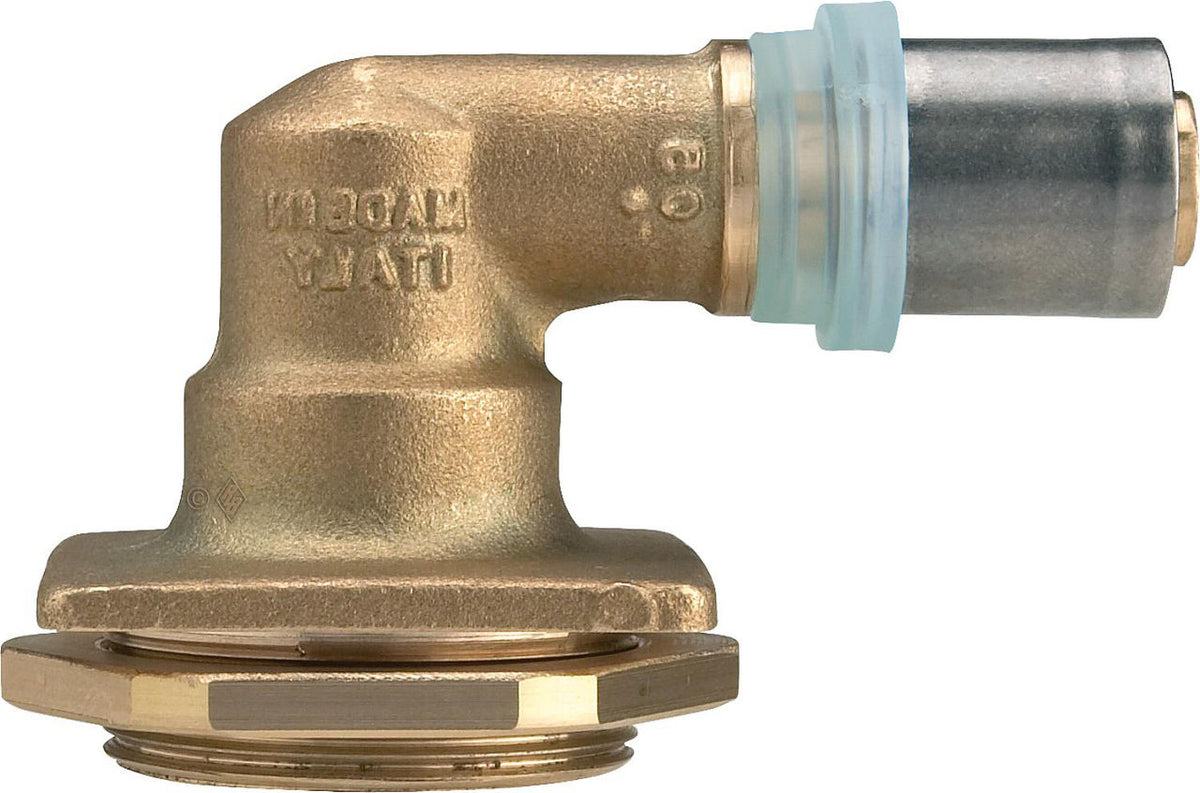

90° elbow for Evenes multilayer flushing cistern

CHF 18.10 - CHF 19.60
/
Tax included

Select an option to add this to your cart.

evenes press fitting for sanitary installations, specially designed for connecting toilet cisterns. Brass body compliant with the UBA positive list for drinking water. System suitable for sanitary, heating, and oil-free compressed air installations.

Features

  • Press fitting with TH profile for multi-layer pipes
  • Quality brass fitting body
  • Compliant with UBA positive list for drinking water
  • 90° elbow for toilet cistern
  • Compatible with sanitary, heating, and compressed air (oil-free) installations
  • 1/2'' threaded connection

Technical Data

Number of connections 2
Brand Evenes
Connection 1 Push-fit sleeve
Shape Joint
DVGW Seal Yes
Suitable for drinking water according to UBA positive list Yes
Connection 2 External thread
Dimensions 16x2 mm - 1/2" : 16 x 2 mm - DN 15 (1/2") · 20x2 mm - 1/2" : 20 x 2 mm - DN 15 (1/2")
Execution 1 piece
Max. fluid temperature (continuous operation) [°C] 95
With flat seal No
Tapered No
Max. working pressure [bar] 10
Available variants
  • SKU 90 062 84 : 16x2 mm - 1/2"
  • SKU 90 062 85 : 20x2 mm - 1/2"
Datasheets
Coude 90° pour réservoir de chasse d'eau evenes multicouche
90° elbow for Evenes multilayer flushing cistern
CHF 18.10 - CHF 19.60
Coude 90° pour réservoir de chasse d'eau evenes multicouche
16x2 mm - 1/2" 90 062 84
CHF 18.10 /each
Coude 90° pour réservoir de chasse d'eau evenes multicouche
20x2 mm - 1/2" 90 062 85
CHF 19.60 /each
