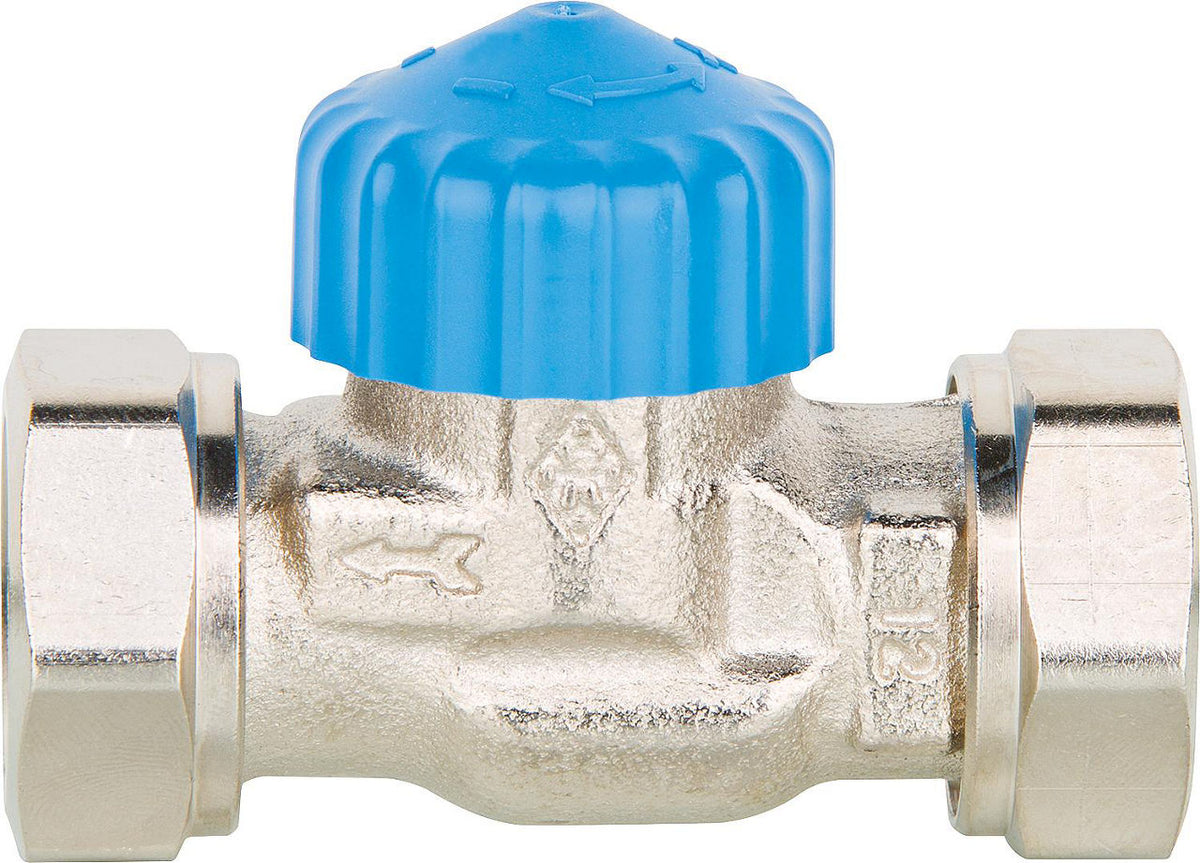

IMI Heimeier straight thermostatic valve body with flat gasket, male, Kvs 2.5

CHF 31.70 - CHF 34.05
/
Tax included

Select an option to add this to your cart.

Description

Straight form

  • Corrosion-resistant, dezincification-free bronze housing, nickel-plated
  • With stainless steel spindle and double O-ring seal
  • Thermostatic head and outer O-ring replaceable without draining the system
  • Black protective cap
  • Operating temperatures: max. 120°C
  • Operating temperatures with casing: 90°C
  • Operating pressure: max. 10 bar
  • low pressure steam: 110°C / 0.5 bar
  • CEN certified
  • Tested according to DIN EN 215
  • Flat gasket

Technical data

Connection of the thermostatic head M30 x 1.5
Version Male × male
Dynamic flow regulator No
Suitable for single-pipe system No
Material bronze
Suitable for twin-pipe system Yes
Reverse flow direction No
Kv value 0 to 0.38
Kvs value 2.50
Flow capacity (min. 10 kPa) [l/h] 0 to 200
Available variants
Model Colour Pipe connection size Preset Surface protection Reference
DN 20 (3/4") nickel-plated DN 20 (3/4") No nickel-plated 90 110 08
DN 25 (1") material color DN 25 (1") Yes untreated 90 110 09
Datasheets
Corps de vanne thermostatique IMI Heimeier droit à joint plat, mâle, Kvs 2,5
IMI Heimeier straight thermostatic valve body with flat gasket, male, Kvs 2.5
CHF 31.70 - CHF 34.05
DN 20 (3/4") 90 110 08
CHF 31.70 /each
DN 25 (1") 90 110 09
CHF 34.05 /each
