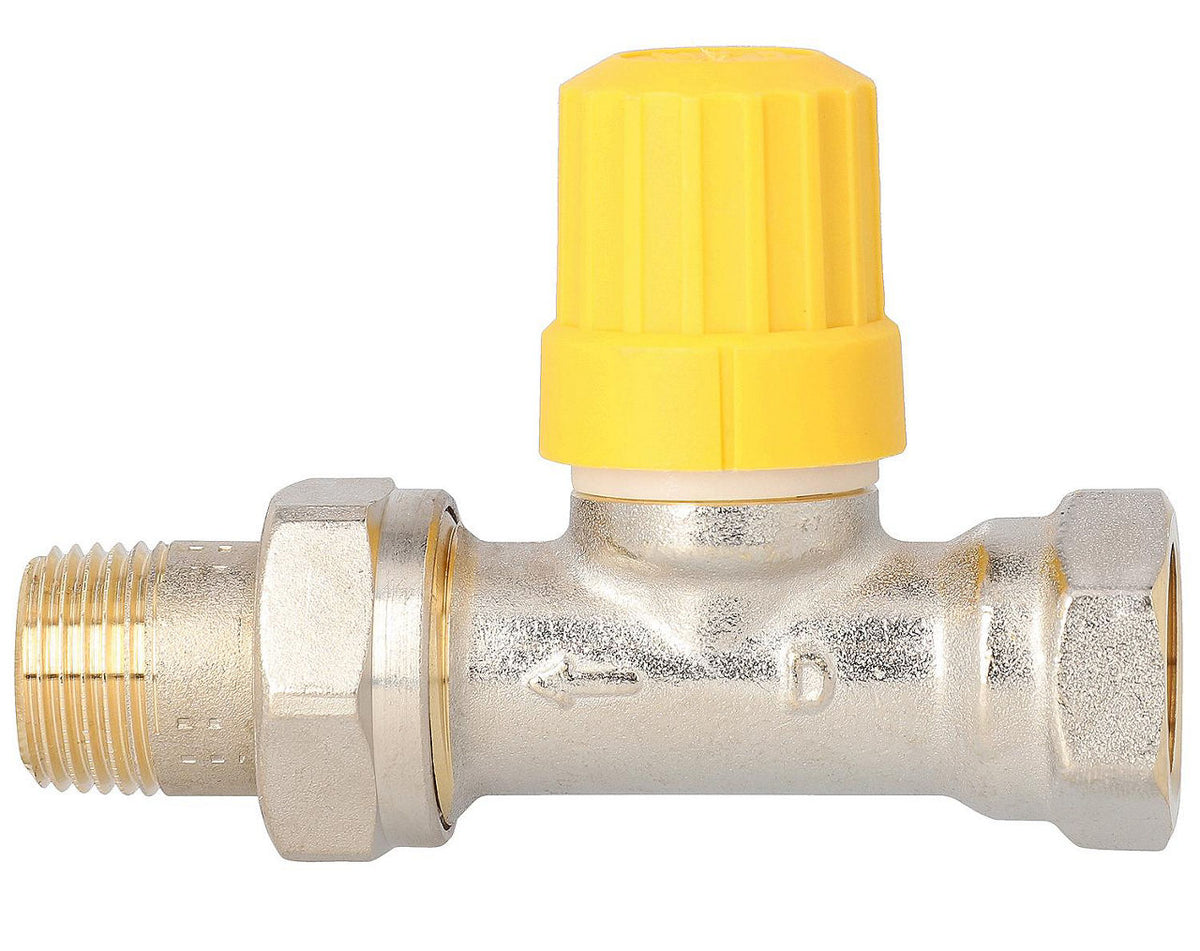

Corps de vanne thermostatique Danfoss RA-UN droit, femelle
Corps de vanne thermostatique Danfoss RA-UN droit, femelle
Corps de vanne thermostatique Danfoss RA-UN droit, femelle

Danfoss RA-UN Straight Thermostatic Valve Body, Female

CHF 27.30 - CHF 28.90
/
Tax included

Select an option to add this to your cart.

Description

  • For high-diffusion, low-volume flow heating systems, e.g., condensing boilers and district heating systems
  • Presetting, fine presetting
  • Yellow cap
  • Thermostatic head connection: snap-fit
  • Suitable thermostatic heads: RAW, RAX, RA
  • Max. operating pressure: 10 bar
  • Max. operating temperature: 120°C
  • Max. differential pressure: 0.6 bar
  • Material: brass, matt nickel-plated

Technical Data

Shape Straight
Thermostatic head connection Flange 23 mm (Danfoss RA)
Version Female × Male
Presetting Yes
Dynamic flow controller No
Suitable for one-pipe system No
Surface protection nickel-plated
Suitable for two-pipe system Yes
Reverse flow direction No
Kvs value 0.57
Available variants
Model Pipe connection size Type Item no.
DN 10 (3/8") DN 10 (3/8") RA-UN 10 90 170 55
DN 15 (1/2") DN 15 (1/2") RA-UN 15 90 170 58
Data sheets
Corps de vanne thermostatique Danfoss RA-UN droit, femelle
Danfoss RA-UN Straight Thermostatic Valve Body, Female
CHF 27.30 - CHF 28.90
DN 10 (3/8") 90 170 55
CHF 27.30 /each
DN 15 (1/2") 90 170 58
CHF 28.90 /each
