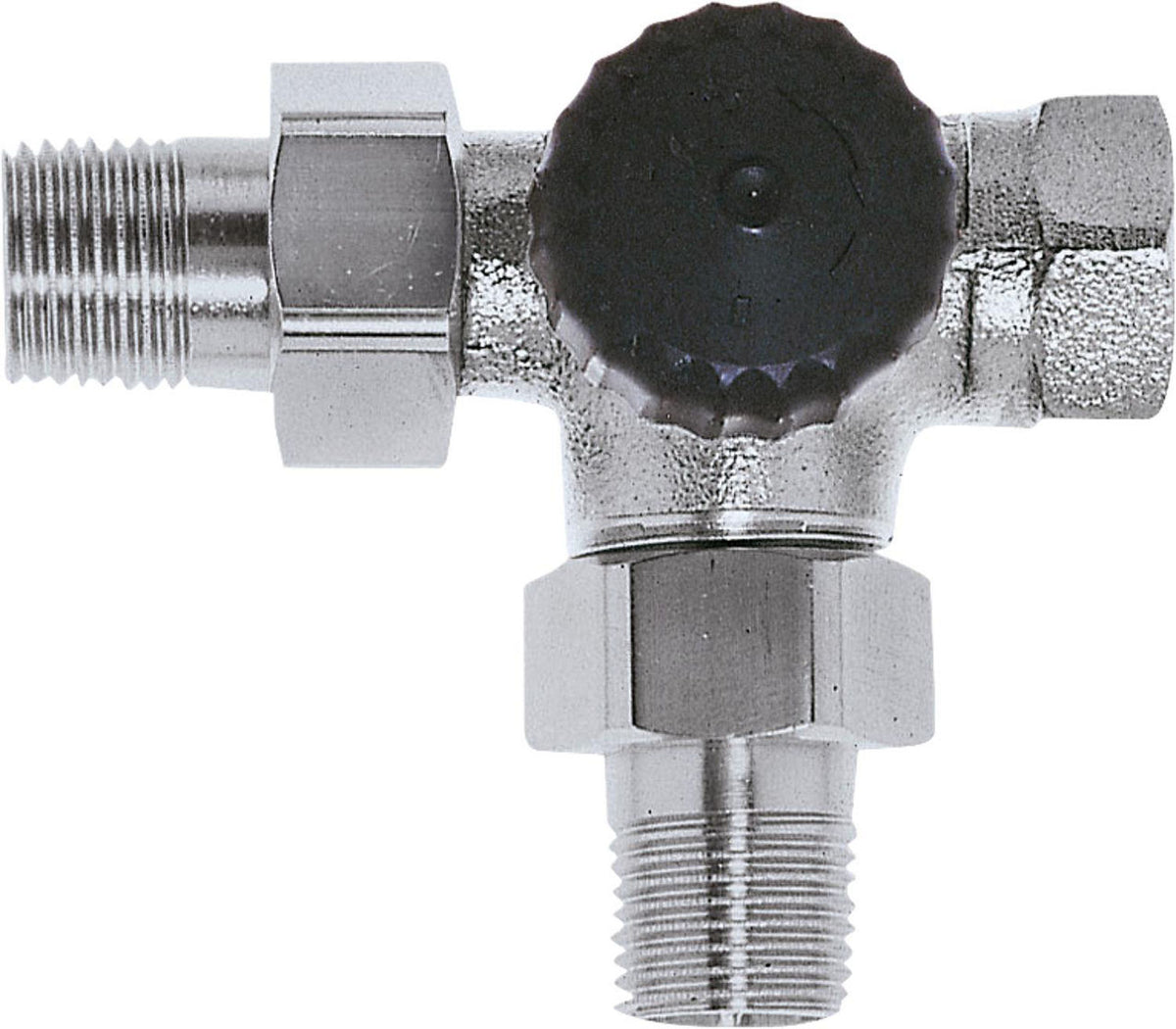

IMI Heimeier 3-way Thermostatic Valve Body DN 15 (1/2"), right-hand radiator connection

CHF 82.10
/
Tax included

Select an option to add this to your cart.

Description

  • With integrated bypass control
  • Material: Nickel-plated bronze
  • With stainless steel spindle and double O-ring
  • External O-ring replaceable without draining the system
  • Max. operating temperature: 120°C
  • Max. operating pressure: 10 bar
  • Connection to radiator on the right

Technical Data

Shape Three-way
Thermostatic head connection M30 x 1.5
Version Female × male
Radiator connection size DN 15 (1/2")
Pipe connection size DN 15 (1/2")
Presetting No
Dynamic flow controller No
Surface protection nickel-plated
Suitable for two-pipe system Yes
Reverse flow direction No
Kv value 0 to 1.45
Kvs value 0.38
Flow rate (min. 10 kPa) [l/h] 0 to 220
Manufacturer part number 4150-02.000
