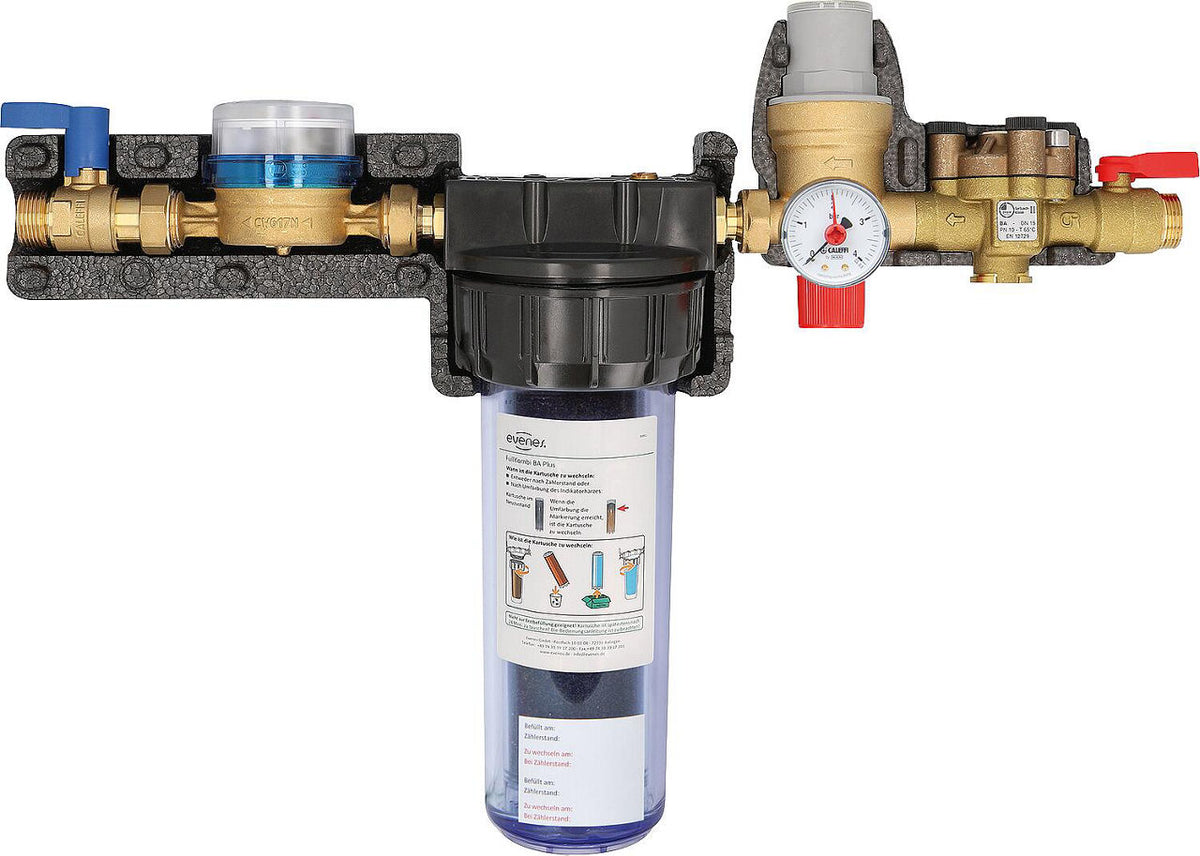

Evenes NaFüKom Plus DN 15 (1/2") heating water filling combination

CHF 486
/
Tax included

Select an option to add this to your cart.

Description

  • For demineralisation of heating water in accordance with VDI 2035 and ÖNORM H 5195-1
  • For stationary mounting
  • With backflow preventer BA, thus meeting the requirements of DIN EN 1717
  • Consumption indication by colour change of the demineralisation cartridge
  • Simple disposal of the demineralisation cartridge with household waste

Scope of delivery

  • Filling unit

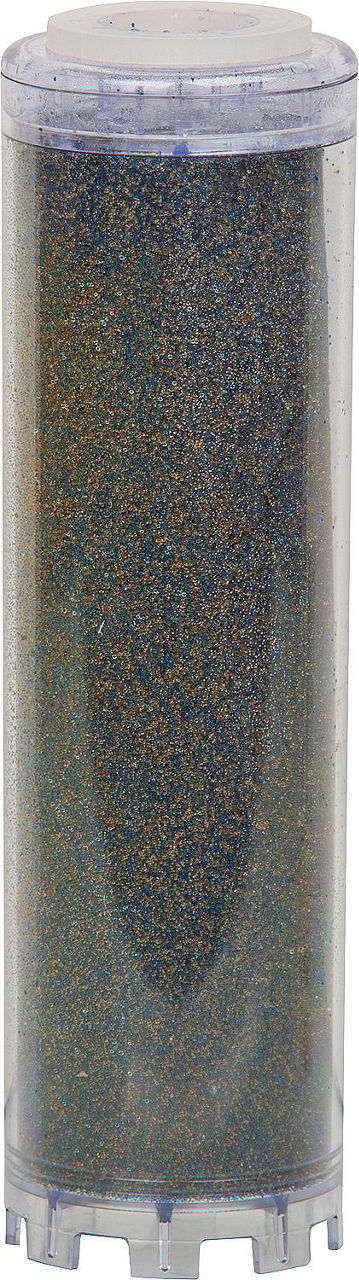

  • Demineralisation cartridge
  • Water meter
  • Shut-off valve

Technical data

  • Setting range of the filling unit: 0.2-4 bar
  • Max. operating pressure: 8 bar
  • Max. inlet operating temperature: 30°C
  • Max. filling capacity: 120 l/h
  • Mixed bed resin: 0.75 l
  • Capacity at 420 μS/cm to < 100: 112.5 litres
Brand evenes
Manufacturer reference 574022 EVN
Pressure [bar] 0.2 — 4
Filling capacity [l/h] 120
Max. volume system content [l] 120
Connection dimensions 1/2 inch (15)
Technical data sheets
