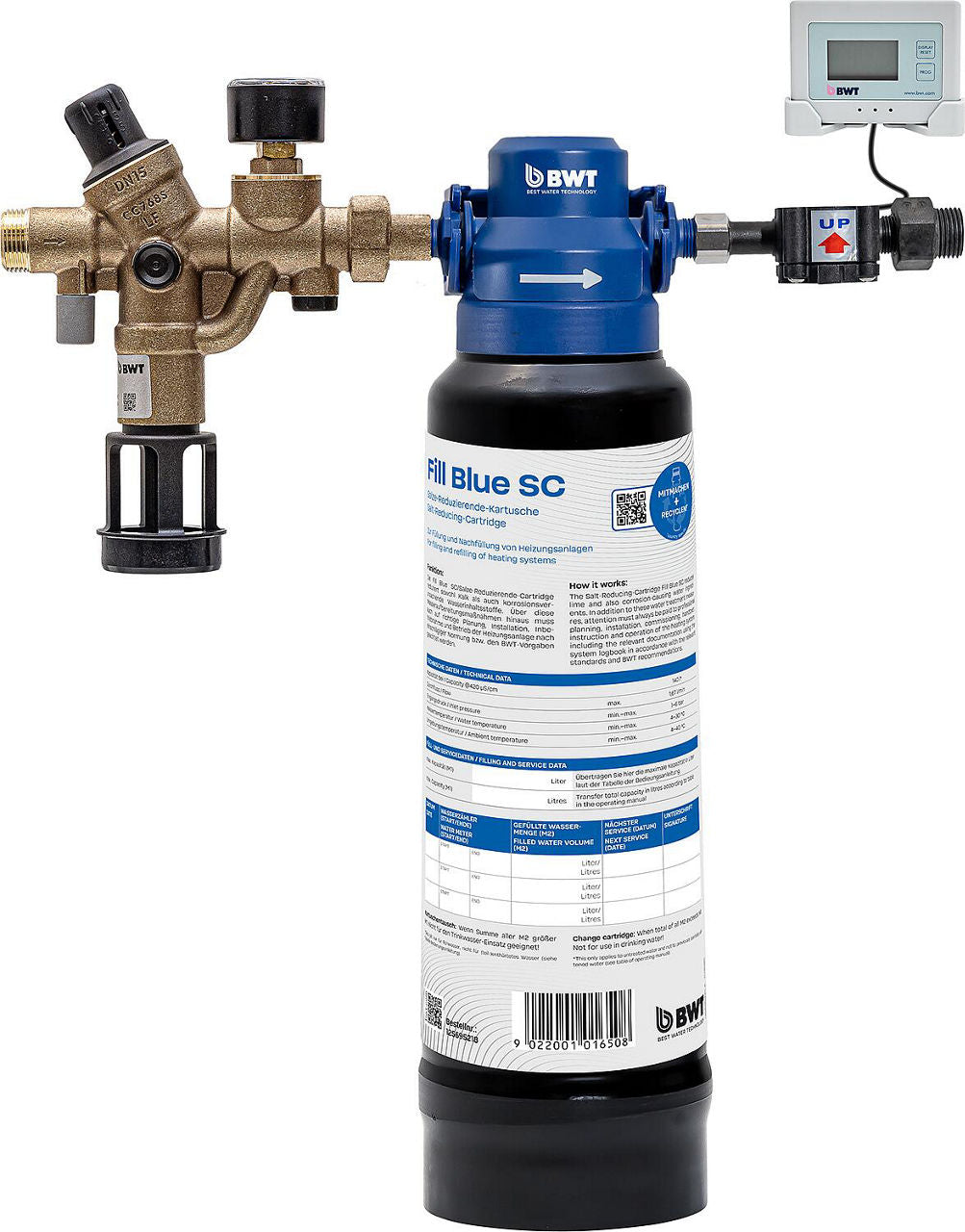

Combinaison de remplissage d'eau de chauffage BWT Fill Blue DN 15 (1/2") mâle
Combinaison de remplissage d'eau de chauffage BWT Fill Blue DN 15 (1/2") mâle
Combinaison de remplissage d'eau de chauffage BWT Fill Blue DN 15 (1/2") mâle

BWT Fill Blue Heating Water Filling Combination DN 15 (1/2") Male

CHF 476.20
/
Tax included

Select an option to add this to your cart.

Description

  • For filling and topping up heating systems according to VDI 2035 and ÖNORM H 5195-1
  • Demineralises and softens heating filling water
  • For stationary mounting
  • Water meter with display
  • Protection against corrosion, deposits and microbiological corrosion
  • System separators according to EN 1717: protects drinking water from backflow and degradation by the heating circuit.
  • Capacity of approx. 140 litres per cartridge for raw water hardness of 14°dH

Consists of

  • Fill Blue HF heating filling block
  • Fill Blue ES heating softening station
  • Fill Blue SC softening cartridge

Technical data

  • Operating pressure: max. 5 bar
  • Operating temperatures filling water: max. 30°C
  • Max. filling capacity: 140 ltr.
  • Cartridge capacity: 140 ltr. at 14°dH
  • Max. flow rate: Kvs 2.45 m³/h
  • Connection thread inlet: DN 20 (3/4"), union nut
  • Connection thread outlet: DN 20 (3/4") with flat seal
  • Connection thread threaded socket: DN 15 (1/2")
  • Mounting position: horizontal with cartridges facing downwards
  • Mounting length, including screw connections: 420 mm
Manufacturer reference 125696681
Brand BWT
Pressure [bar] 0 — 5
Max. volume. System content [l] 140
Filling pipe connection external thread
Connection dimensions 3/4 inch (20)
