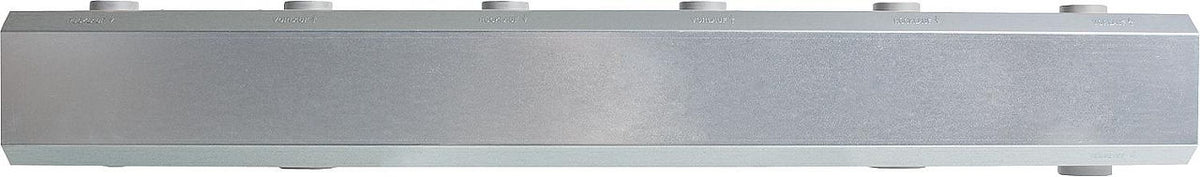

Heating manifold-distributor type HVM SU with insulation, DN 32 (1"1/4) – 120 kW, 5.3 m³/h

CHF 344.65 - CHF 625.35
/
Tax included

Select an option to add this to your cart.

Description

  • Hot water flow rate: up to 5.3 m³/h
  • Power ∆t=20°C up to 120 kW
  • Flow chamber is located in the return chamber
  • Boiler connections lower DN40 (1½" female) sleeve, side flow connection, lower return connection
  • Group connections: DN32 (1¼" female) sleeve
  • DN15 (½") female drain sleeve for flow and return chamber

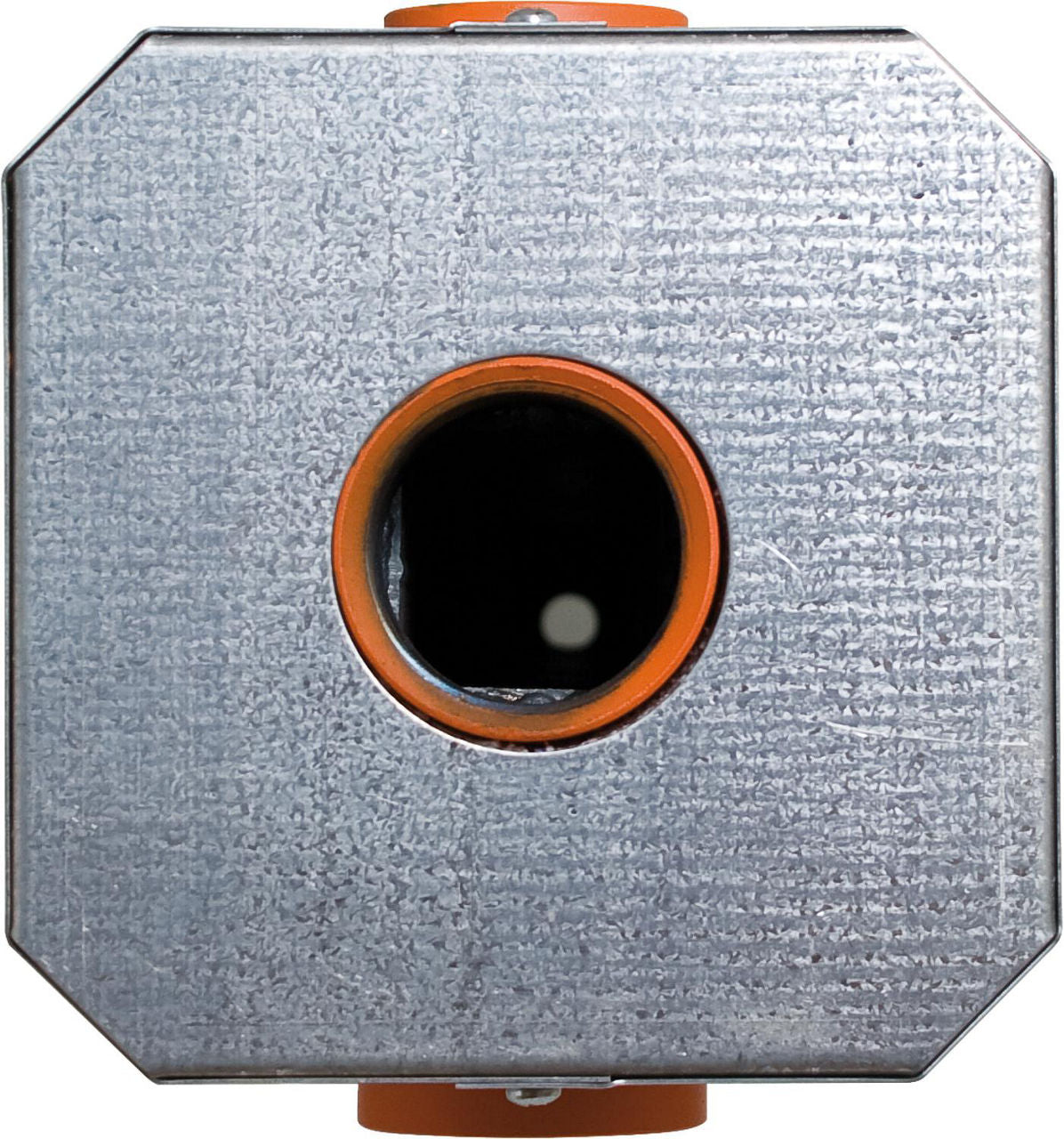

  • Insulation (35 mm) with galvanized steel sheet casing (0.6 mm)
  • Compact construction with integrated flow and return
  • Grouped outlet juxtaposed.
  • Pressure tested and galvanized
  • Max. operating pressure 6 bar
  • Max. supply temperature 90°C
  • Flow and return markings in the steel sheet casing.

Technical data

L [mm] 770 (2 circuits) · 1170 (3 circuits) · 1570 (4 circuits)
Type HVM SU-2 (2 circuits) · HVM SU-3 (3 circuits) · HVM SU-4 (4 circuits)
Max. power [kW] 120
Magnetite separator No
Max. flow rate [m³/h] 5.3
Hydraulic separator No
Thermal separation of flow and return No
Center distance of groups [mm] 200
Width [mm] 770 (2 circuits) · 1170 (3 circuits) · 1570 (4 circuits)
Height [mm] 176
Depth [mm] 152
Surface protection galvanized
Thermal insulation Yes
Deaerators No
Number of groups 2 (2 circuits) · 3 (3 circuits) · 4 (4 circuits)
Max. operating temperature [°C] 90
Max. operating pressure [bar] 6
Material steel
Drain valve No
Nominal internal diameter of central heating DN 40 (1 1/2")
Connection of groups internal thread
Nominal internal diameter groups DN 32 (1 1/4")
Wall mounting bracket No
Central heating connection internal thread
Available variants
  • 2 circuits — ref. 90 000 40
  • 3 circuits — ref. 90 000 41
  • 4 circuits — ref. 90 000 42
Datasheets
Collecteur-répartiteur de chauffage type HVM SU avec isolation, DN 32 (1"1/4) – 120 kW, 5,3 m³/h
Heating manifold-distributor type HVM SU with insulation, DN 32 (1"1/4) – 120 kW, 5.3 m³/h
CHF 344.65 - CHF 625.35
2 laps 90 000 40
CHF 344.65 /each
3 rounds 90 000 41
CHF 442 /each
4 tours 90 000 42
CHF 625.35 /each
