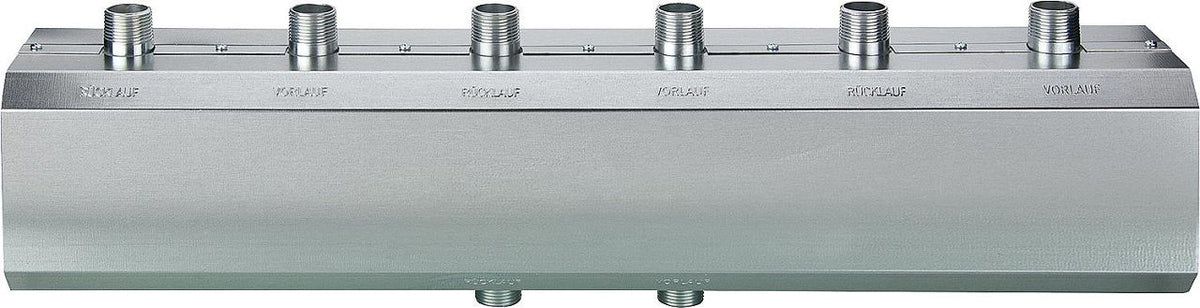

Heating manifold HVI type with thermal separation and insulation, DN 25 (1") – 50 kW

CHF 417.85 - CHF 697.35
/
Tax included

Select an option to add this to your cart.

Description

  • Hot water flow rate: up to 2.3 m³/h
  • Power at ∆t = 20°C at 50 kW
  • Thermally separated supply and return chambers
  • Suitable for heat output
  • Lower boiler connection: DN 25 (1") male nipple
  • Manifold connection: DN 25 (1") male nipple
  • Insulation (35 mm) with galvanized steel sheet casing (0.60 mm)
  • Compact construction with integrated supply and return
  • Grouped outlet juxtaposed.
  • Pressure tested and galvanized
  • Max. operating pressure 6 bar
  • Max. flow temperature 90°C
  • Supply and return markings in the steel sheet casing.

Technical data

L [mm] 520 (2 circuits) · 770 (3 circuits) · 1020 (4 circuits)
Type HVI-2 (2 circuits) · HVI-3 (3 circuits) · HVI-4 (4 circuits)
Max. power [kW] 50
Magnetite separator No
Max. flow rate [m³/h] 2.3
Hydraulic separator No
Thermal separation of supply and return Yes
Center distance supply/return [mm] 125
Center distance of groups [mm] 125
Width [mm] 520 (2 circuits) · 770 (3 circuits) · 1020 (4 circuits)
Height [mm] 210
Depth [mm] 152
Surface protection galvanized
Thermal insulation Yes
Air vents No
Number of groups 2 (2 circuits) · 3 (3 circuits) · 4 (4 circuits)
Max. operating temperature [°C] 90
Max. operating pressure [bar] 6
Material steel
Drain valve No
Nominal internal diameter of central heating DN 25 (1")
Connection of groups external thread
Nominal internal diameter Groups DN 25 (1")
Wall mounting bracket No
Connection to central heating external thread
Available variants
  • 2 circuits — Ref. 90 000 30
  • 3 circuits — Ref. 90 000 31
  • 4 circuits — Ref. 90 000 32
Technical data sheets
Collecteur-répartiteur de chauffage type HVI à séparation thermique avec isolation, DN 25 (1") – 50 kW
Heating manifold HVI type with thermal separation and insulation, DN 25 (1") – 50 kW
CHF 417.85 - CHF 697.35
2 circuits 90 000 30
CHF 417.85 /each
3 loops 90 000 31
CHF 554.25 /each
4 channels 90 000 32
CHF 697.35 /each
