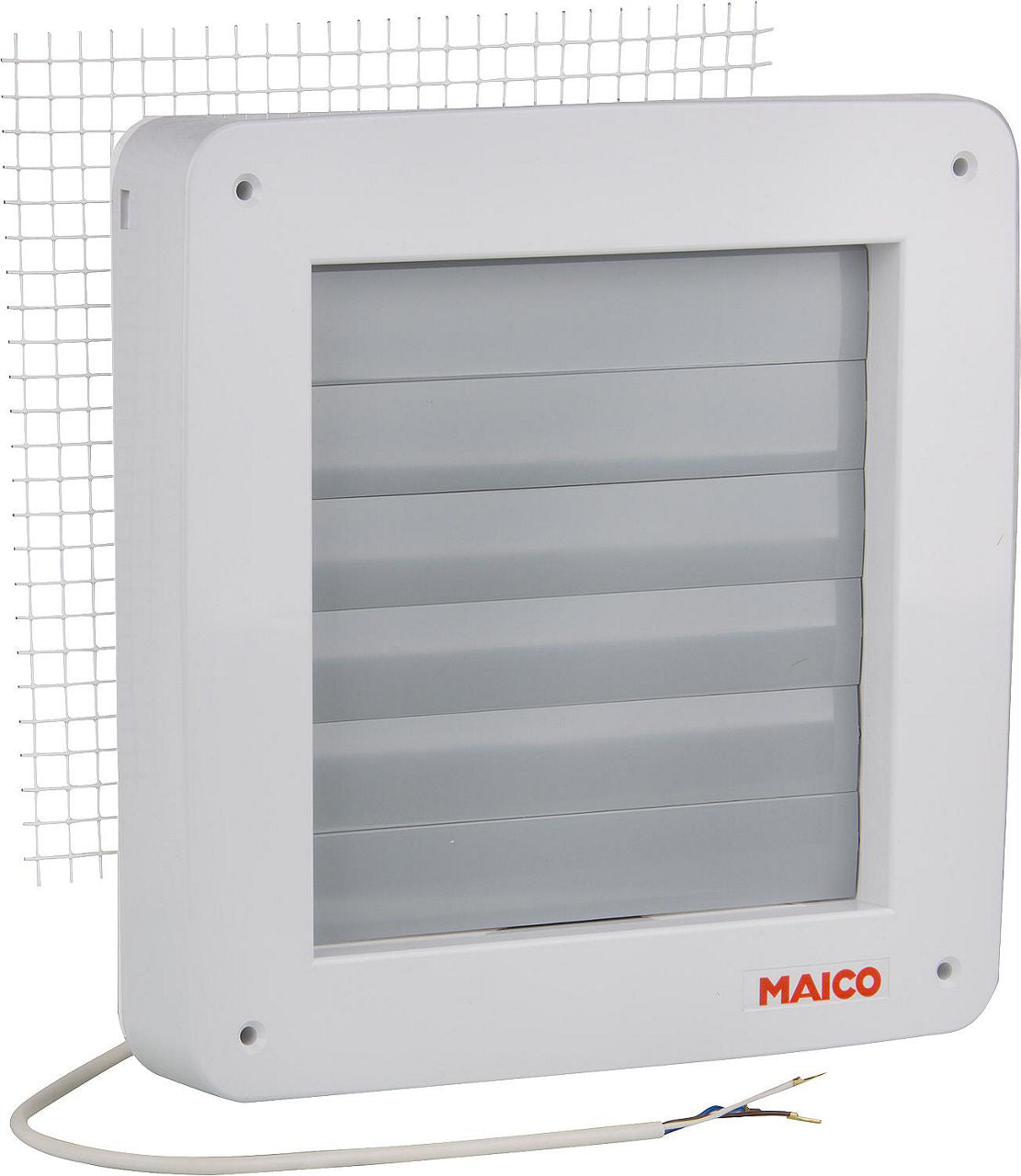

Clapet extérieur motorisé Maico MK 20, 230 V AC, IP 55
Clapet extérieur motorisé Maico MK 20, 230 V AC, IP 55
Clapet extérieur motorisé Maico MK 20, 230 V AC, IP 55

Motorized exterior shutter Maico MK 20, 230 V AC, IP 55

CHF 367.65
/
Tax included

Select an option to add this to your cart.

Description

Electric external damper for weather protection and to prevent cold air ingress when the extractor fan is off

  • Opens and closes when the extractor fan switches on/off
  • MK with geared motor: rated power 3 W, rated current 0.015 A
  • Pressure drop: 11 PA
  • Material: plastic
  • Color: traffic white (similar to RAL 9016)
  • Louver color: silver grey
  • Max ambient temperature: 40°C
  • Voltage: 230 V/AC, 50 Hz
  • Protection type: IP 55
  • Rated power 3 W, rated current 0.015 A
  • Opens and closes when the fan switches on/off
  • Connection: 230 V
  • Pressure loss: 11 PA
  • Color: signal white (equivalent to RAL 9016)
  • Louver color: silver grey

Technical Data

Depth [mm] 51
Nominal diameter [mm] 200
Manufacturer reference 0093.0906
External dimensions [mm] 325 x 325
Datasheets
Clapet extérieur motorisé Maico MK 20, 230 V AC, IP 55
Motorized exterior shutter Maico MK 20, 230 V AC, IP 55
CHF 367.65
Standard 98 017 44
CHF 367.65 /each
