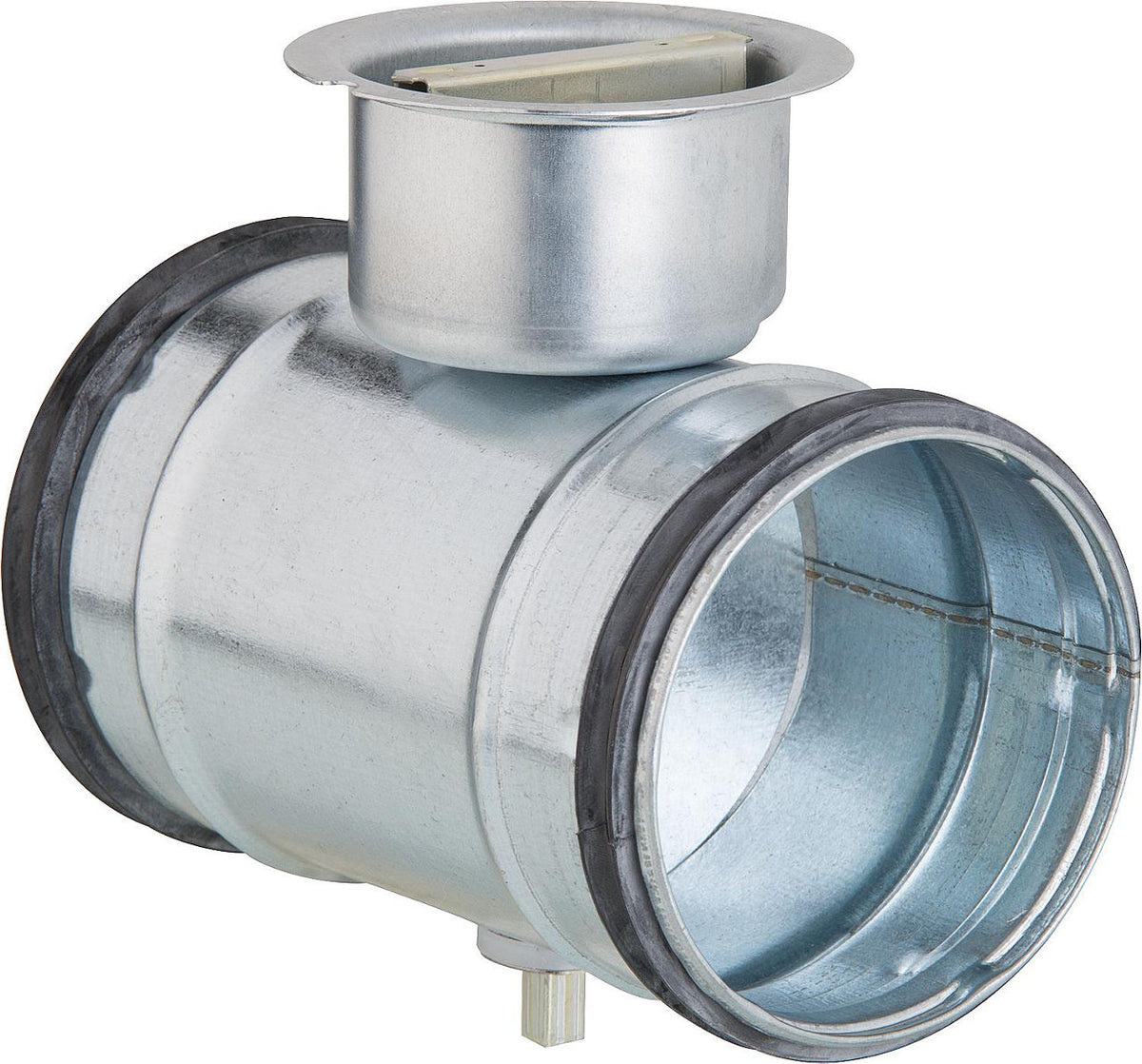

Clapet d'étranglement manuel Rokaflex, galvanisé
Clapet d'étranglement manuel Rokaflex, galvanisé
Clapet d'étranglement manuel Rokaflex, galvanisé

Rokaflex manual throttle valve, galvanized

CHF 21.10 - CHF 38.55
/
Tax included

Select an option to add this to your cart.

Description

  • Manually operated throttle valve for adjusting airflow
  • Does not close tightly
  • Adjustable from 0 to 90° using a graduated scale
  • Locked with 2 screws
  • Material: galvanized steel sheet
  • Temperature: up to 100°C
  • Damper shaft with airtight seal in plastic bushings
  • Insulation up to 50 mm possible
  • With double-lip EPDM seal

Technical data

Operation manual
Full closure No
Material Steel, hot-dip galvanized
Available variants
Model Reference
Nominal diameter 100 mm 98 001 22
Nominal diameter 140 mm 98 001 24
Nominal diameter 150 mm 98 001 25
Nominal diameter 160 mm 98 001 26
Nominal diameter 200 mm 98 001 28
Nominal diameter 315 mm 98 001 29
Datasheets
Clapet d'étranglement manuel Rokaflex, galvanisé
Rokaflex manual throttle valve, galvanized
CHF 21.10 - CHF 38.55
Nominal diameter 100 mm 98 001 22
CHF 21.10 /each
Nominal diameter 140 mm 98 001 24
CHF 22.95 /each
Nominal diameter 150 mm 98 001 25
CHF 24.80 /each
Nominal diameter 160 mm 98 001 26
CHF 24.80 /each
Nominal diameter 200 mm 98 001 28
CHF 26.45 /each
Nominal diameter 315 mm 98 001 29
CHF 38.55 /each
