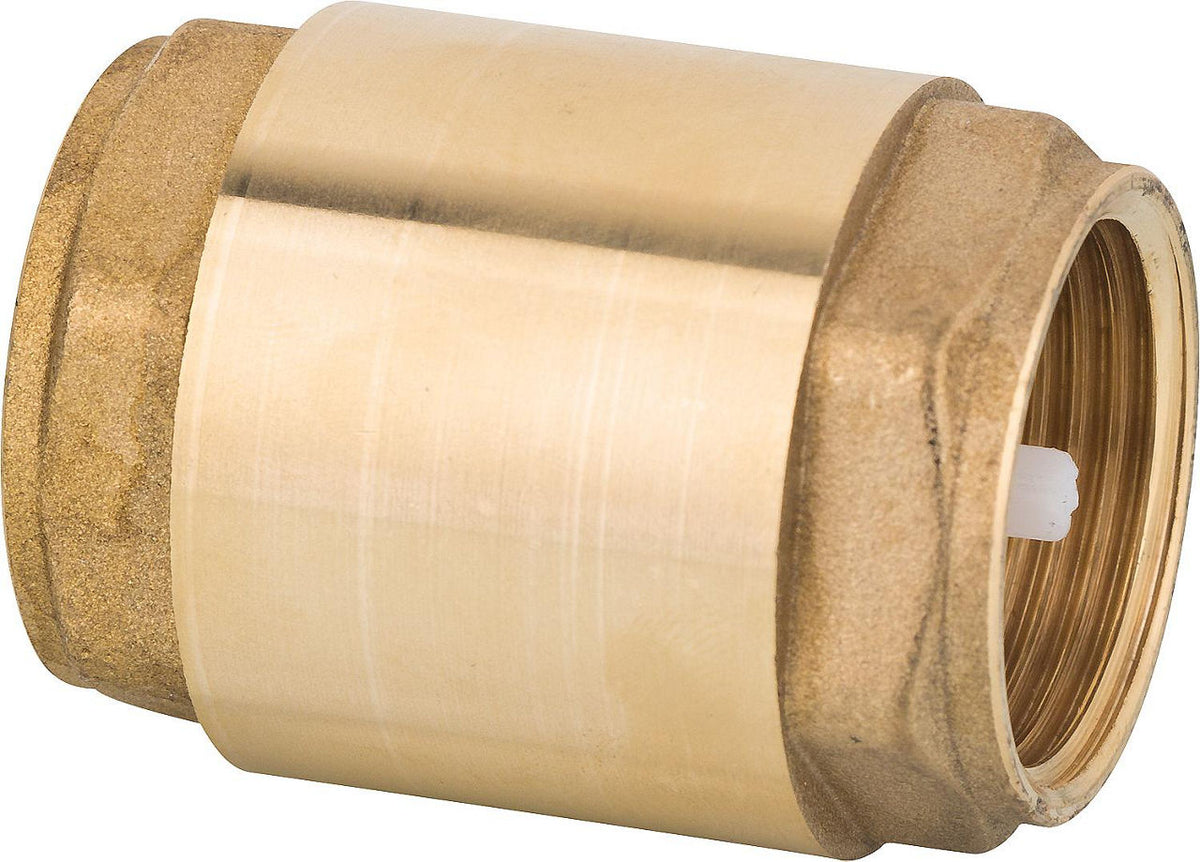

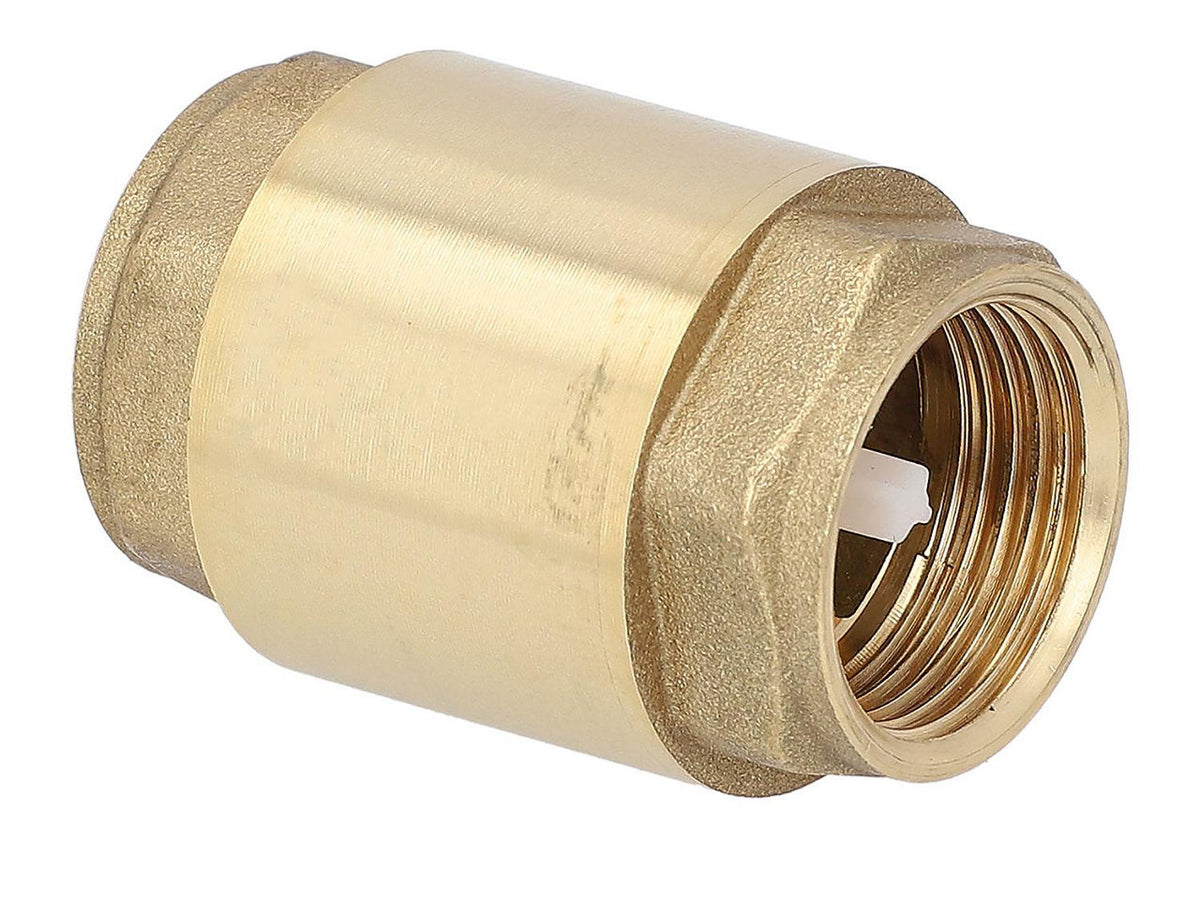

Brass check valve, female × female (max. 110°C)

CHF 5.35 - CHF 36.45
/
Tax included

Select an option to add this to your cart.

Features

  • Opening pressure: 20 mbar
  • Max. operating temperature: 110 °C
  • Valve body: Brass
  • Valve/disc: Plastic
  • Valve seal: NBR

Technical data

  • Connections: Female thread
  • Installation length [mm]: 45
  • Body material: Brass
  • Size: DN 10 (3/8")
  • Length [mm]: 45
  • Design: Straight
  • Max. operating pressure [bar]: 16
  • Seal: NBR nitrile rubber
  • Max. fluid temperature (continuous operation) [°C]: 110
Available variants
  • SKU 90 031 01: DN 10 (3/8") (max. 16 bar)
  • SKU 90 031 02: DN 15 (1/2") (max. 16 bar)
  • SKU 90 031 03: DN 20 (3/4") (max. 16 bar)
  • SKU 90 031 04: DN 25 (1") (max. 16 bar)
  • SKU 90 031 05: DN 32 (1 1/4") (max. 10 bar)
  • SKU 90 031 06: DN 40 (1 1/2") (max. 10 bar)
  • SKU 90 031 07: DN 50 (2") (max. 10 bar)
Data sheets
Clapet anti-retour laiton, femelle × femelle (max. 110°C)
Brass check valve, female × female (max. 110°C)
CHF 5.35 - CHF 36.45
Clapet anti-retour laiton, femelle × femelle (max. 110°C)
DN 10 (3/8") 90 031 01
CHF 5.65 /each
Clapet anti-retour laiton, femelle × femelle (max. 110°C)
DN 15 (1/2") 90 031 02
CHF 5.35 /each
Clapet anti-retour laiton, femelle × femelle (max. 110°C)
NPS 3/4 (DN 20) 90 031 03
CHF 8 /each
Clapet anti-retour laiton, femelle × femelle (max. 110°C)
DN 25 (1") 90 031 04
CHF 12 /each
Clapet anti-retour laiton, femelle × femelle (max. 110°C)
NPS 1 1/4" (DN 32) 90 031 05
CHF 17.20 /each
Clapet anti-retour laiton, femelle × femelle (max. 110°C)
DN 40 (1 1/2") 90 031 06
CHF 23.45 /each
Clapet anti-retour laiton, femelle × femelle (max. 110°C)
DN 50 (2") 90 031 07
CHF 36.45 /each
