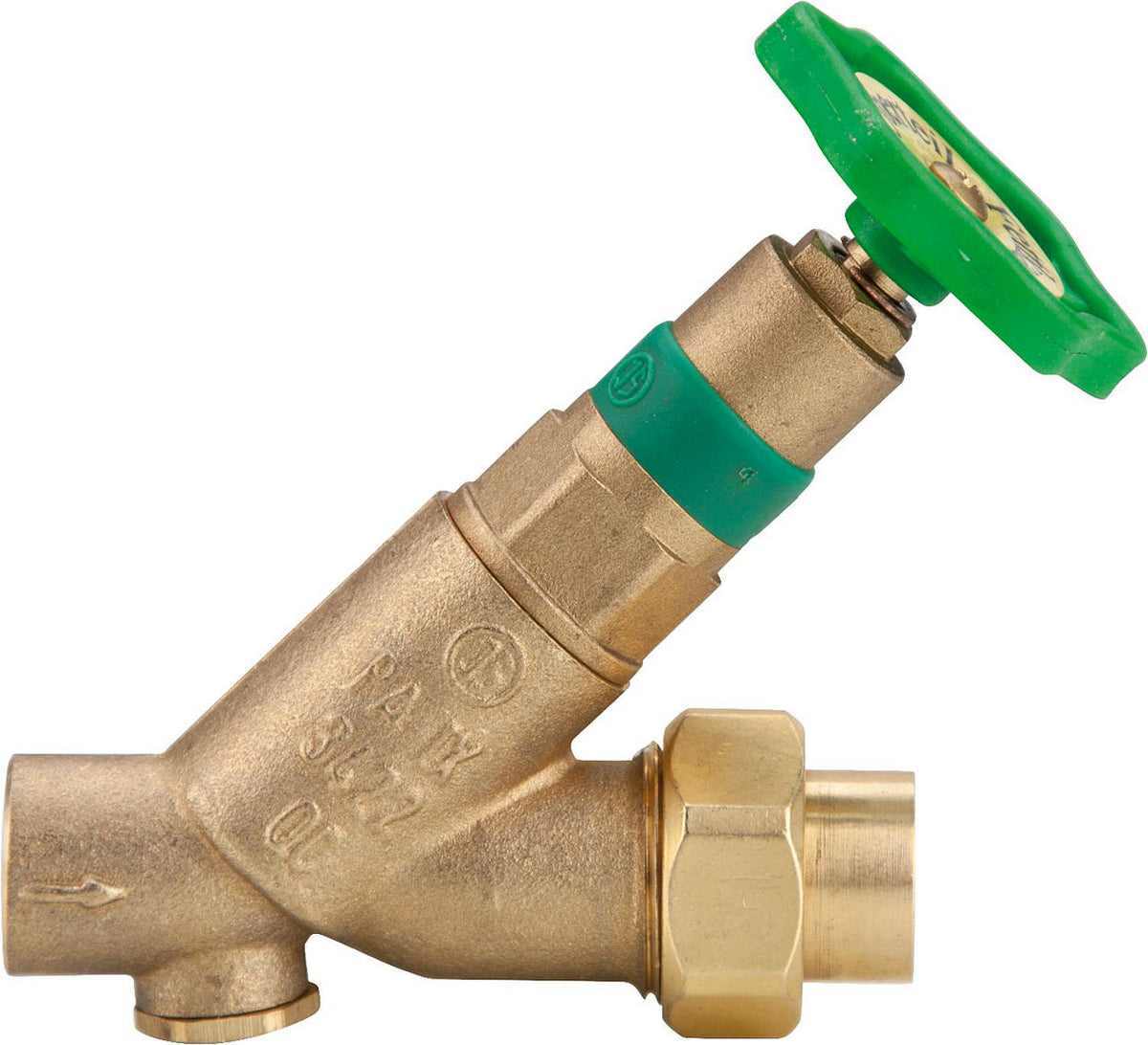

Clapet anti-retour combiné KFR en laiton, raccord à souder, sans vidange
Clapet anti-retour combiné KFR en laiton, raccord à souder, sans vidange
Clapet anti-retour combiné KFR en laiton, raccord à souder, sans vidange

KFR combined check valve in brass, solder connection, without drain

CHF 21.45 - CHF 25.90
/
Tax included

Select an option to add this to your cart.

Features

  • Conforms to BAG positive list for drinking water
  • With non-rising stem
  • Service temperature: max. +90°C
  • Max. pressure: 10 bar
  • Seal: EPDM
  • Material: Brass
  • With greasing chamber stem
  • Inlet: Solder connection
  • Outlet: Conical-sealing solder connection
  • With non-return valve
  • With inspection screw

Technical data

  • Solder connection: 15 mm
  • Straight-through: yes
  • Surface protection: untreated
  • Connection 1: Solder sleeve
  • Connection 2: Solder sleeve
  • Spring closing (NC): no
  • Body material: Brass
  • Seal: Rubber
  • Max. fluid temperature (continuous service) [°C]: 90
  • Control: Handwheel
  • Suitable for liquids: yes
  • Max. operating pressure [bar]: 10
  • DVGW certified: yes
  • Spring opening (NO): no
Available variants
  • SKU 93 102 14 : 15 mm
  • SKU 93 102 16 : 22 mm
Clapet anti-retour combiné KFR en laiton, raccord à souder, sans vidange
KFR combined check valve in brass, solder connection, without drain
CHF 21.45 - CHF 25.90
Clapet anti-retour combiné KFR en laiton, raccord à souder, sans vidange
15 mm 93 102 14
CHF 21.45 /each
Clapet anti-retour combiné KFR en laiton, raccord à souder, sans vidange
22 mm 93 102 16
CHF 25.90 /each
