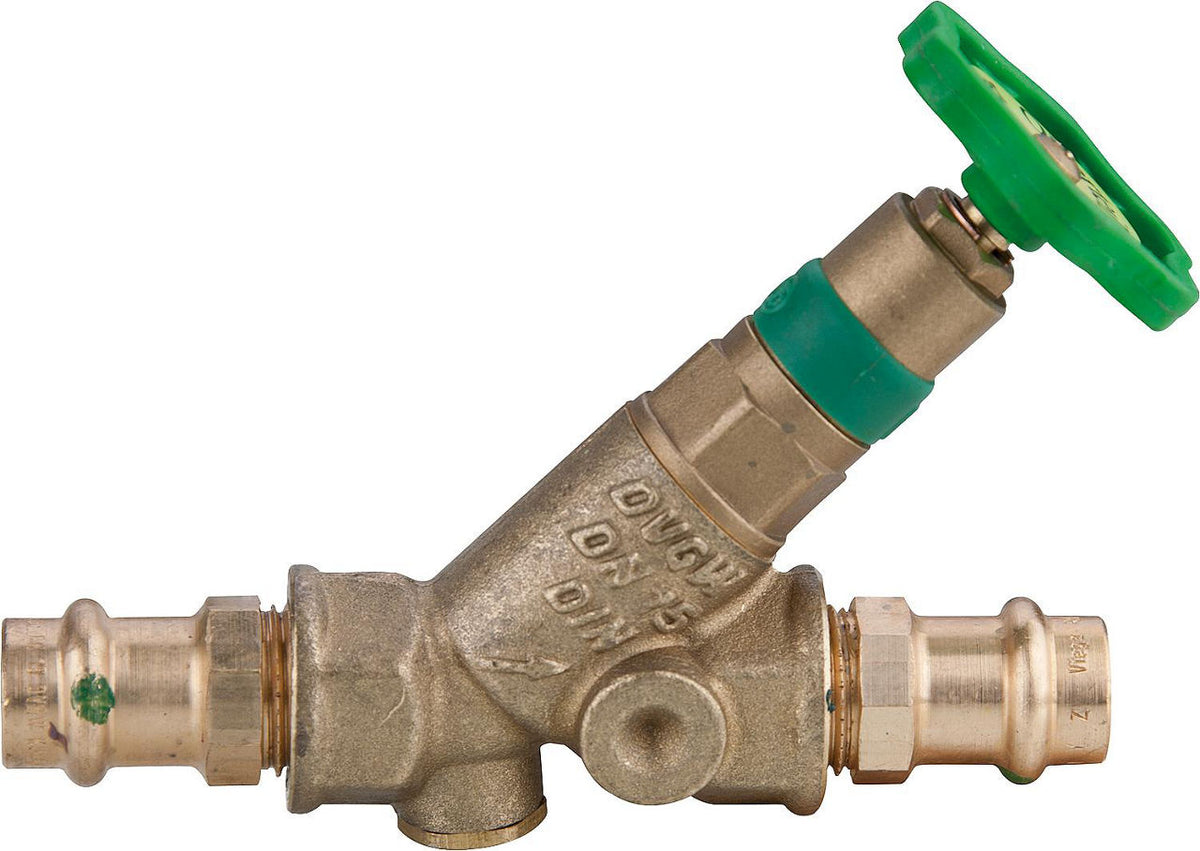

Clapet anti-retour combiné KFR à sertir profil V, tige non montante, sans vidange
Clapet anti-retour combiné KFR à sertir profil V, tige non montante, sans vidange
Clapet anti-retour combiné KFR à sertir profil V, tige non montante, sans vidange

Combined non-return valve KFR for V-profile crimping, non-rising stem, without drainage

CHF 27.75 - CHF 71.30
/
Tax included

Select an option to add this to your cart.

Features

  • Complies with the UBA positive list for drinking water
  • Operating temperature: max. +90°C
  • Max. pressure: 10 bar
  • Gasket: EPDM
  • Material: Brass
  • With grease chamber spindle
  • KFR straight-through valves with test screw
  • With non-rising spindle
  • With internal threaded crimp connection
  • With non-return valve

Technical Data

  • Straight-through: yes
  • Surface protection: untreated
  • DN: 15
  • Connection 1: Crimp socket
  • Connection 2: Crimp socket
  • Spring closed (NC): no
  • Crimp connection: 15 mm
  • Body material: Brass
  • Gasket: Rubber
  • Max. fluid temperature (continuous service) [°C]: 90
  • Actuation: Handwheel
  • Suitable for liquids: yes
  • Max. operating pressure [bar]: 10
  • DVGW tested: yes
  • Spring open (NO): no
Available variants
  • SKU 93 101 16 : DN 15
  • SKU 93 101 18 : DN 20
  • SKU 93 101 19 : DN 25
Clapet anti-retour combiné KFR à sertir profil V, tige non montante, sans vidange
Combined non-return valve KFR for V-profile crimping, non-rising stem, without drainage
CHF 27.75 - CHF 71.30
Clapet anti-retour combiné KFR à sertir profil V, tige non montante, sans vidange
DN 15 · 15 mm 93 101 16
CHF 27.75 /each
Clapet anti-retour combiné KFR à sertir profil V, tige non montante, sans vidange
DN 20 · 22 mm 93 101 18
CHF 40.25 /each
Clapet anti-retour combiné KFR à sertir profil V, tige non montante, sans vidange
OD 25 · 28 mm 93 101 19
CHF 71.30 /each
