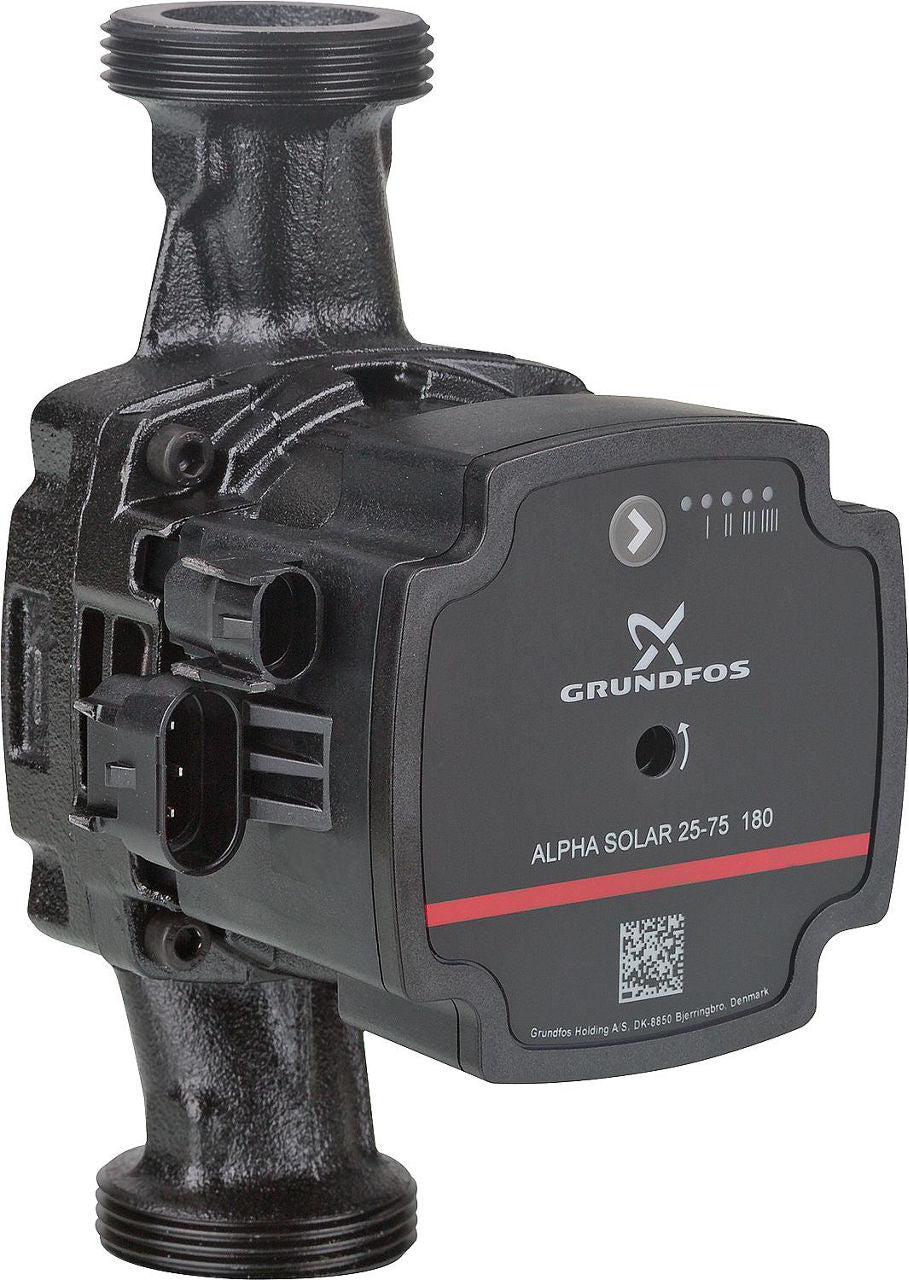

ALPHA Solar, Hybrid circulators 180mm
ALPHA Solar, Hybrid circulators 180mm

ALPHA Solar, Hybrid circulators 180mm

CHF 429.25 - CHF 460.15
/
Tax included

Select an option to add this to your cart.

For use in solar thermal installations

  • With PWM input, can also operate without PWM signal
  • Push-button for setting PWM regulation mode or 4 constant speeds
  • LEDs for operation and fault indication
  • Cable with plug for power supply and PWM signal included
  • Delivery without screw connection

Technical data:

  • Fluid temperature: 2°C - 110°C
  • Ambient temperature: 2°C - 70°C
  • Max. operating pressure: 10 bar
  • Supply voltage: 230 V / 60 Hz
  • Pump body material: Cast iron, KTL coated
  • Protection class: X4D
  • EEI≤ 0.20
  • Connection cable length: 1000 mm
  • Propylene glycol content in water must not exceed 50%
  • Installation length: 180 mm

Available variants

Technical details per variant

25-75 — Ref. 97 009 93

  • Energy Efficiency Index (EEI): 0.2
  • Power [W]: 2...45
  • Installation length [mm]: 180
  • Protection class (IP): IPX4D
  • Pressure class: PN 10
  • Nominal size: DN 25 (1")
  • Body material: Cast iron
  • Max. fluid temperature (continuous operation) [°C]: 110
  • Frequency: 50/60 Hz
  • Supply voltage: 1 x 230 V
  • Type: 25-75
  • External thread: DN 40 (1 1/2")
  • Connection: External thread

25-145 — Ref. 97 009 94

  • Energy Efficiency Index (EEI): 0.2
  • Power [W]: 2...60
  • Installation length [mm]: 180
  • Protection class (IP): IPX4D
  • Pressure class: PN 10
  • Nominal diameter: DN 25 (1")
  • Body material: Cast iron
  • Max. fluid temperature (continuous operation) [°C]: 110
  • Frequency: 50/60 Hz
  • Supply voltage: 1 x 230 V
  • Type: 25-145
  • External thread: DN 40 (1 1/2")
  • Connection: External thread
Technical data sheets
ALPHA Solar, Hybrid circulators 180mm
ALPHA Solar, Hybrid circulators 180mm
CHF 429.25 - CHF 460.15
25-75 97 009 93
CHF 429.25 /each
25-145 97 009 94
CHF 460.15 /each
