Grundfos Comfort BT and BXT Domestic Hot Water Recirculation Pumps

CHF 200.60 - CHF 224.50
/
Tax included

Select an option to add this to your cart.

Features

  • For potable water circulation systems in single and two-family homes
  • High-efficiency permanent magnet motor with submerged rotor
  • Integrated dry-running protection
  • Spherical rotor with integrated impeller
  • Simple electrical installation via power plug
  • Thermal insulation shell included
  • Delivery without screw connection
  • Operating voltage: 230 V, 50 Hz
  • Protection class: IP 44
  • Power: max. 7 W
  • Fluid temperature: 2 - 95°C
  • Fluid temperature during operation: 60°C
  • Operating pressure: max. 10 bar
  • Head: max. 1.4 m
  • Flow rate: max. 500 l/h
  • Pump body material: Brass MS 68
  • Impeller: Stainless steel, EPDM, PPO, PTFE, Graphite
  • With integrated thermostat function
  • Type BX T with integrated non-return valve and shut-off valve

Technical Data

  • Installation length [mm]: 80
  • Connection: DN 15 (1/2")
  • Body material: Brass
  • Max. fluid temperature (continuous operation) [°C]: 95
  • Connection: Female thread
Available variants

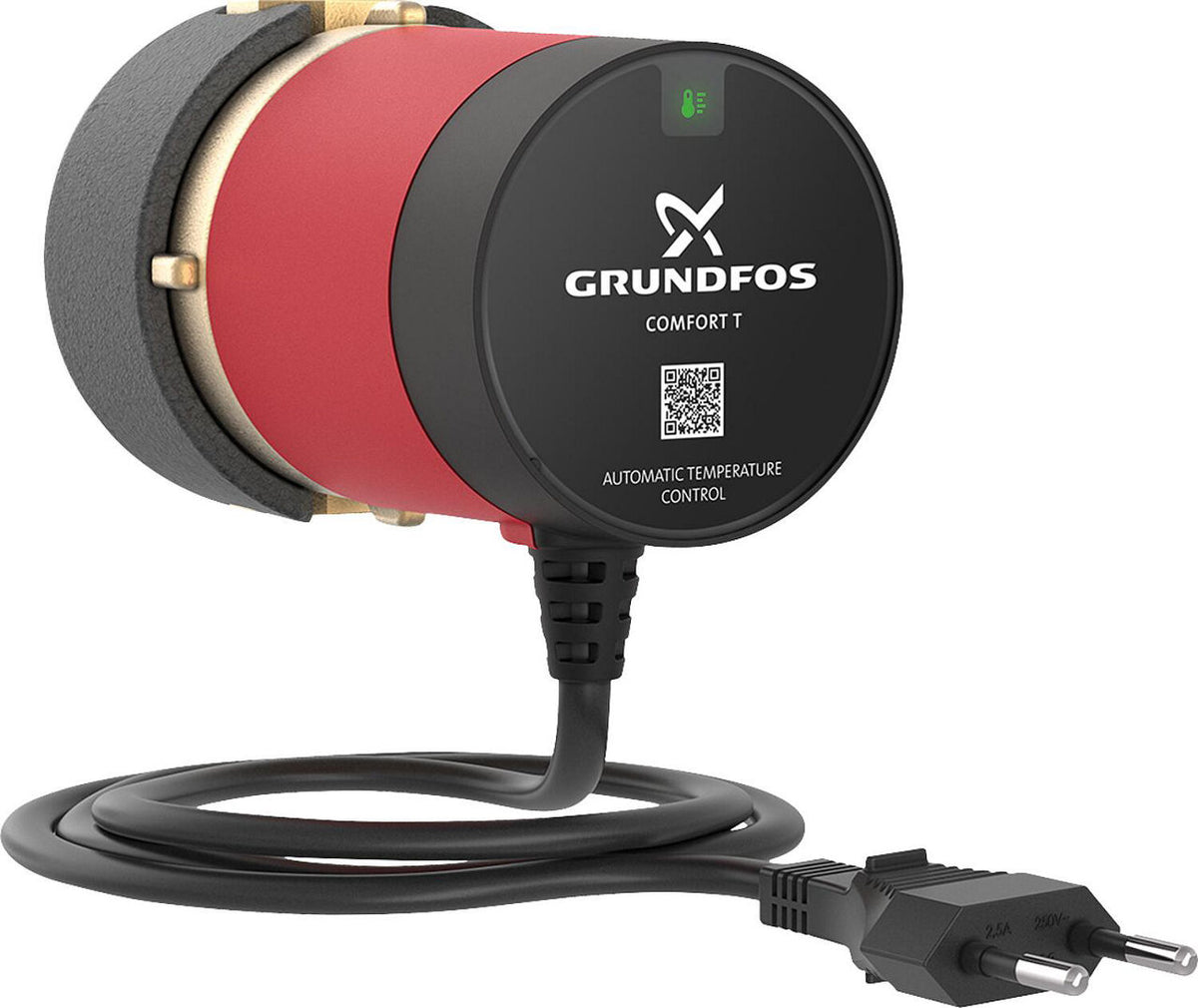

  • SKU 90 126 57: 15-14 B T

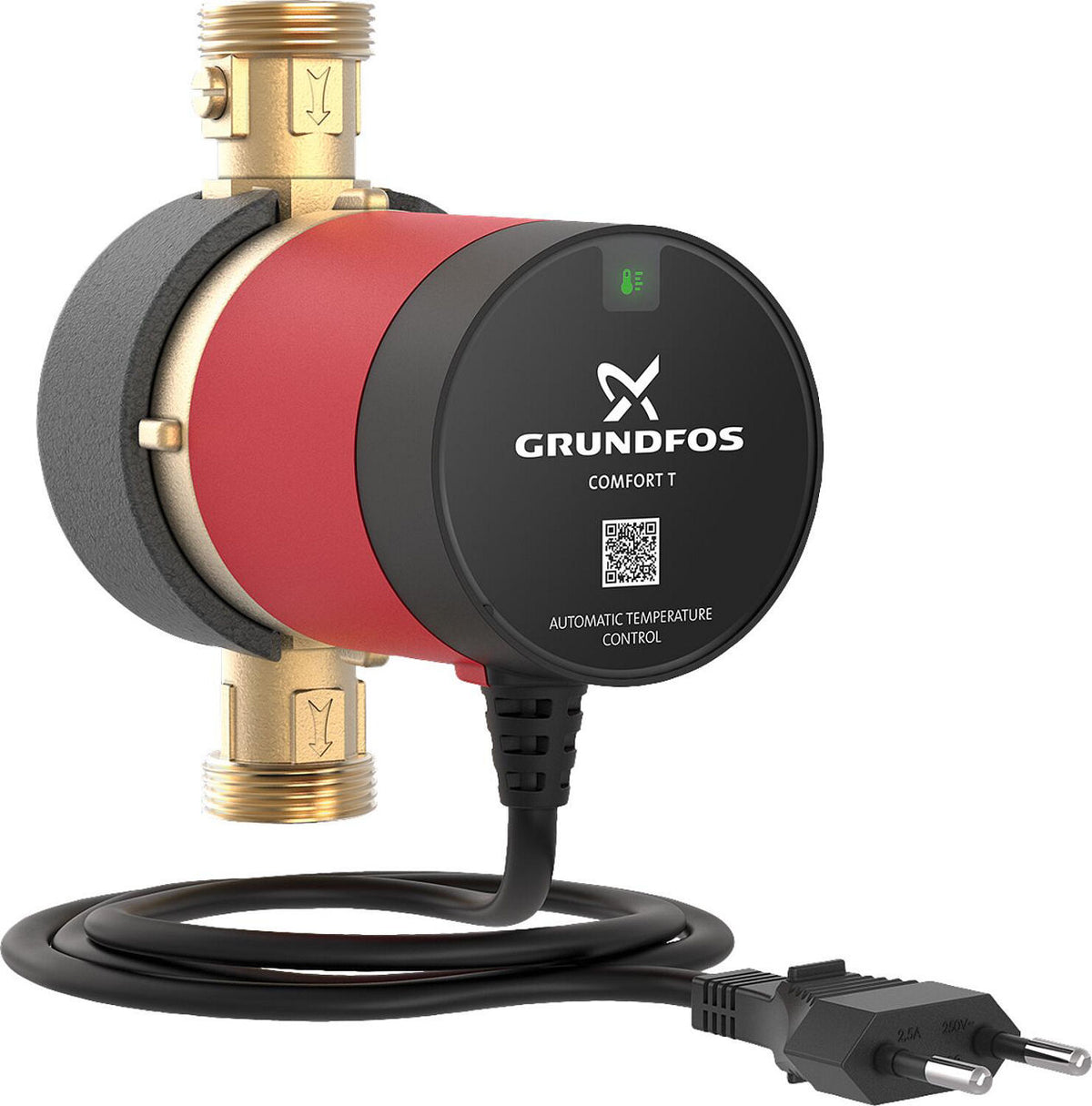

  • SKU 90 126 58: 15-14 BX T
Circulateur sanitaire Grundfos Comfort BT et BXT
Grundfos Comfort BT and BXT Domestic Hot Water Recirculation Pumps
CHF 200.60 - CHF 224.50
Circulateur sanitaire Grundfos Comfort BT et BXT
15-14 BT 90 126 57
CHF 200.60 /each
Circulateur sanitaire Grundfos Comfort BT et BXT
15-14 BX T 90 126 58
CHF 224.50 /each
