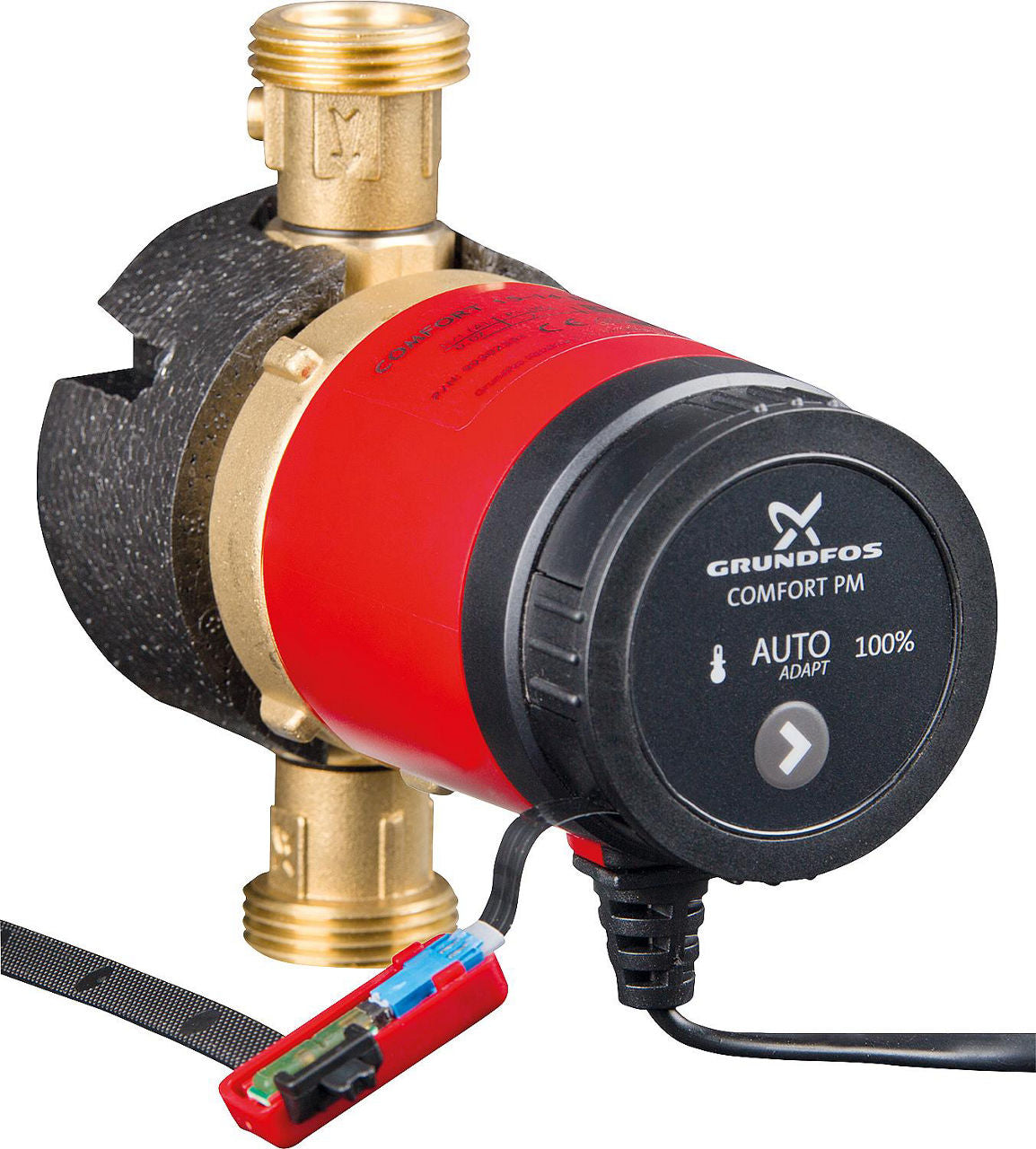

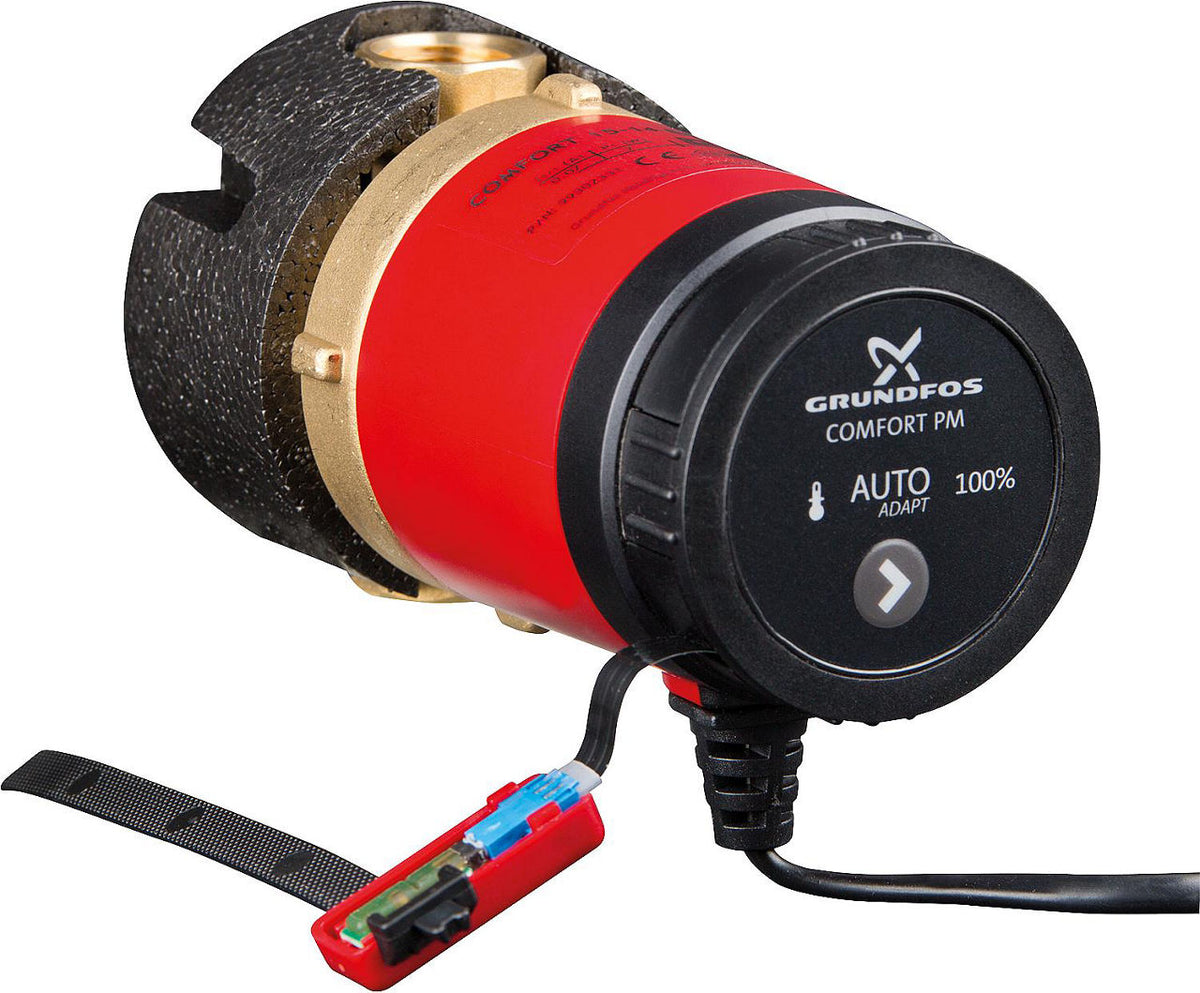

Grundfos Comfort BA and BXA Domestic Hot Water Circulator Pumps

CHF 297.85 - CHF 327.20
/
Tax included

Select an option to add this to your cart.

Features

  • For domestic hot water circulation systems in single-family and two-family homes
  • High-efficiency permanent magnet motor with canned rotor
  • Integrated dry-run protection
  • Spherical rotor with integrated impeller
  • Simple electrical installation via mains plug
  • Incl. thermal insulation shell
  • Delivery without screw connection
  • Operating voltage: 230 V, 50 Hz
  • Protection class: IP 44
  • Power: max. 7 W
  • Fluid temperature: 2 - 95°C
  • Fluid temperature during operation: 60°C
  • Operating pressure: max. 10 bar
  • Head: max. 1.4 m
  • Flow rate: max. 500 l/h
  • Pump housing material: Brass MS 68
  • Impeller: Stainless steel, EPDM, PPO, PTFE, Graphite
  • Automatic adaptation to user behavior via AutoAdapt function
  • Red LED for fault indication
  • Type BXA with integrated check valve and shut-off valve

Technical data

  • Installation length [mm]: 80
  • Connection: DN 15 (1/2") IG
  • Body material: Brass
  • Max. fluid temperature (continuous operation) [°C]: 95
  • Connection: Female thread
Available variants
  • SKU 90 030 49: 15-14 BA PM
  • SKU 90 030 51: 15-14 BXA PM
Data sheets
Circulateur sanitaire Grundfos Comfort BA et BXA
Grundfos Comfort BA and BXA Domestic Hot Water Circulator Pumps
CHF 297.85 - CHF 327.20
Circulateur sanitaire Grundfos Comfort BA et BXA
15-14 BA PM 90 030 49
CHF 297.85 /each
Circulateur sanitaire Grundfos Comfort BA et BXA
2:14 PM BXA 90 030 51
CHF 327.20 /each
