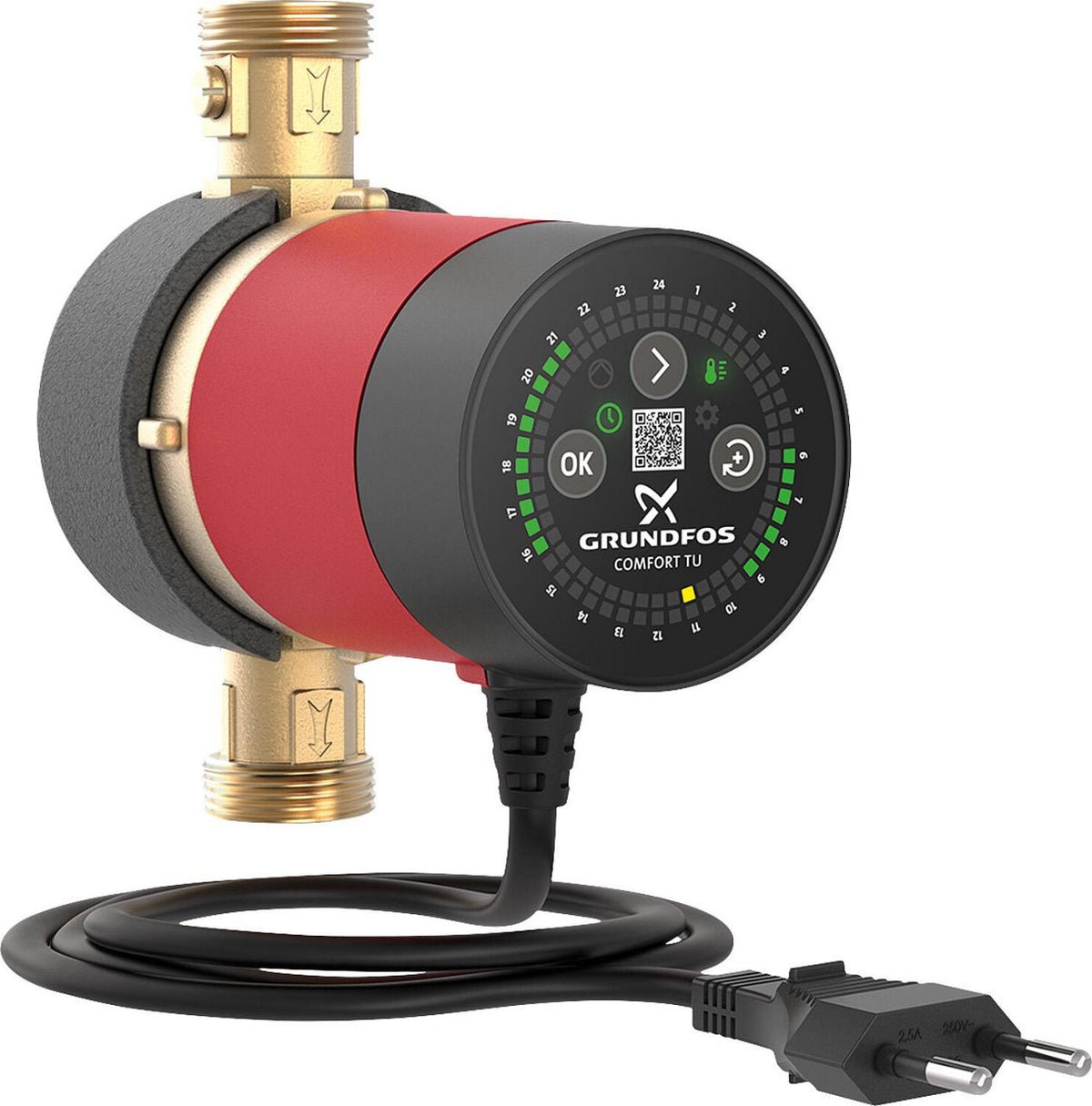

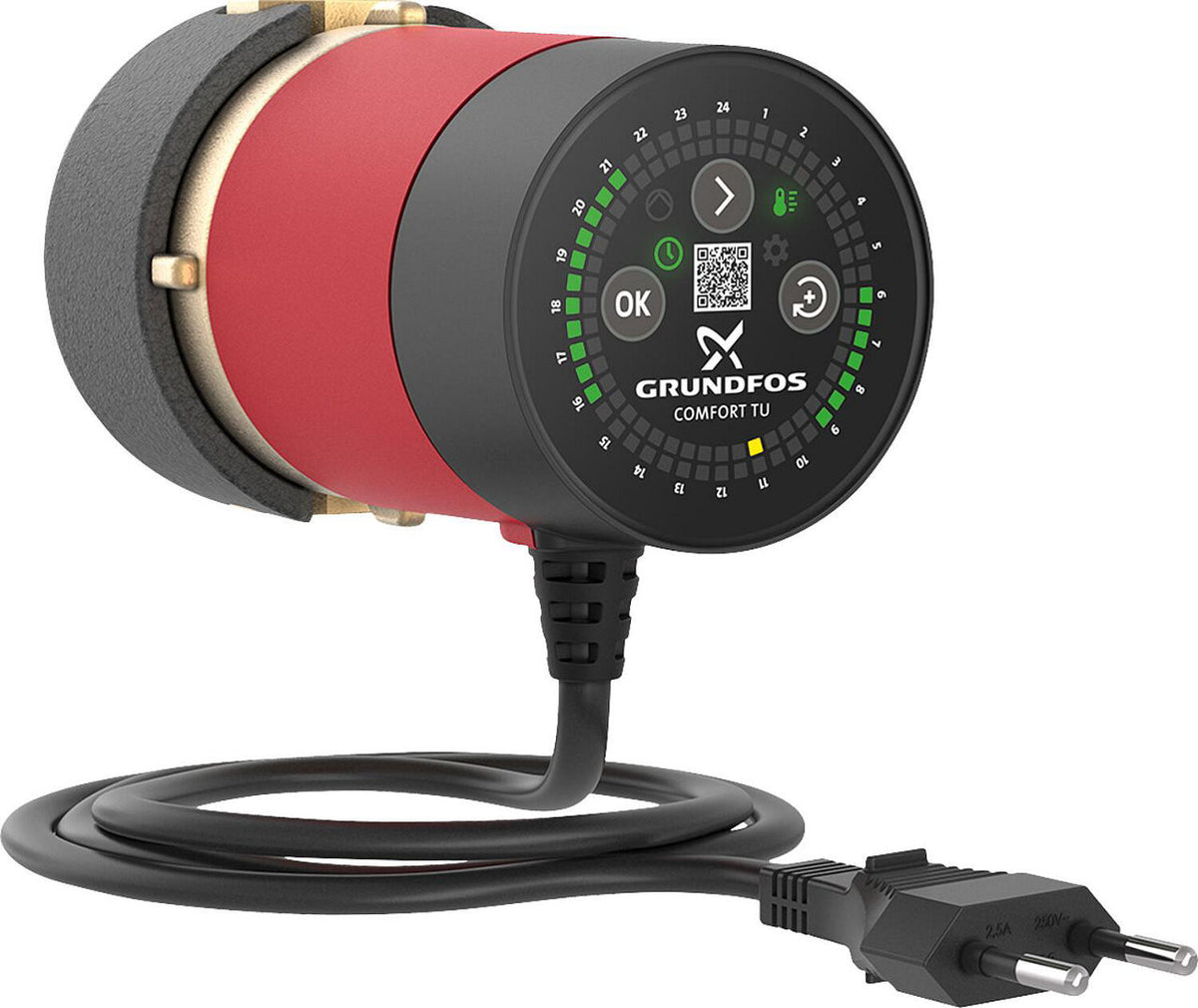

Circulateur sanitaire Grundfos Comfort 15-14 TU
Circulateur sanitaire Grundfos Comfort 15-14 TU
Circulateur sanitaire Grundfos Comfort 15-14 TU
Circulateur sanitaire Grundfos Comfort 15-14 TU
Circulateur sanitaire Grundfos Comfort 15-14 TU
Circulateur sanitaire Grundfos Comfort 15-14 TU

Grundfos Comfort 15-14 TU Sanitary Circulator

CHF 240.95 - CHF 277.65
/
Tax included

Select an option to add this to your cart.

Features

  • For potable water circulation systems in single-family and two-family homes
  • High-efficiency canned rotor permanent magnet motor
  • Integrated dry-running protection
  • Spherical rotor with integrated impeller
  • Simple electrical installation via mains plug
  • Thermal insulation shell included
  • Delivery without screw connection
  • Operating voltage: 230 V, 50 Hz
  • Protection class: IP 44
  • Max. power: 7 W
  • Fluid temperature: 2 - 95°C
  • Fluid temperature during operation: 60°C
  • Operating pressure: max. 10 bar
  • Head: max. 1.4 m
  • Flow rate: max. 500 l/h
  • Pump body material: Brass MS 68
  • Impeller: Stainless steel, EPDM, PPO, PTFE, Graphite
  • With integrated timer and thermostat function
  • Type BX TU with integrated non-return valve and shut-off valve

Technical data

  • Installation length [mm]: 80
  • Connection: DN 15 (1/2")
  • Body material: Brass
  • Max. fluid temperature (continuous operation) [°C]: 95
  • Connection: Female thread
Available variants
  • SKU 90 125 40: 15-14 B TU
  • SKU 90 125 41: 15-14 BX TU
Data sheets
Circulateur sanitaire Grundfos Comfort 15-14 TU
Grundfos Comfort 15-14 TU Sanitary Circulator
CHF 240.95 - CHF 277.65
Circulateur sanitaire Grundfos Comfort 15-14 TU
15-14 B TU 90 125 40
CHF 240.95 /each
Circulateur sanitaire Grundfos Comfort 15-14 TU
15-14 BX YOU 90 125 41
CHF 277.65 /each
