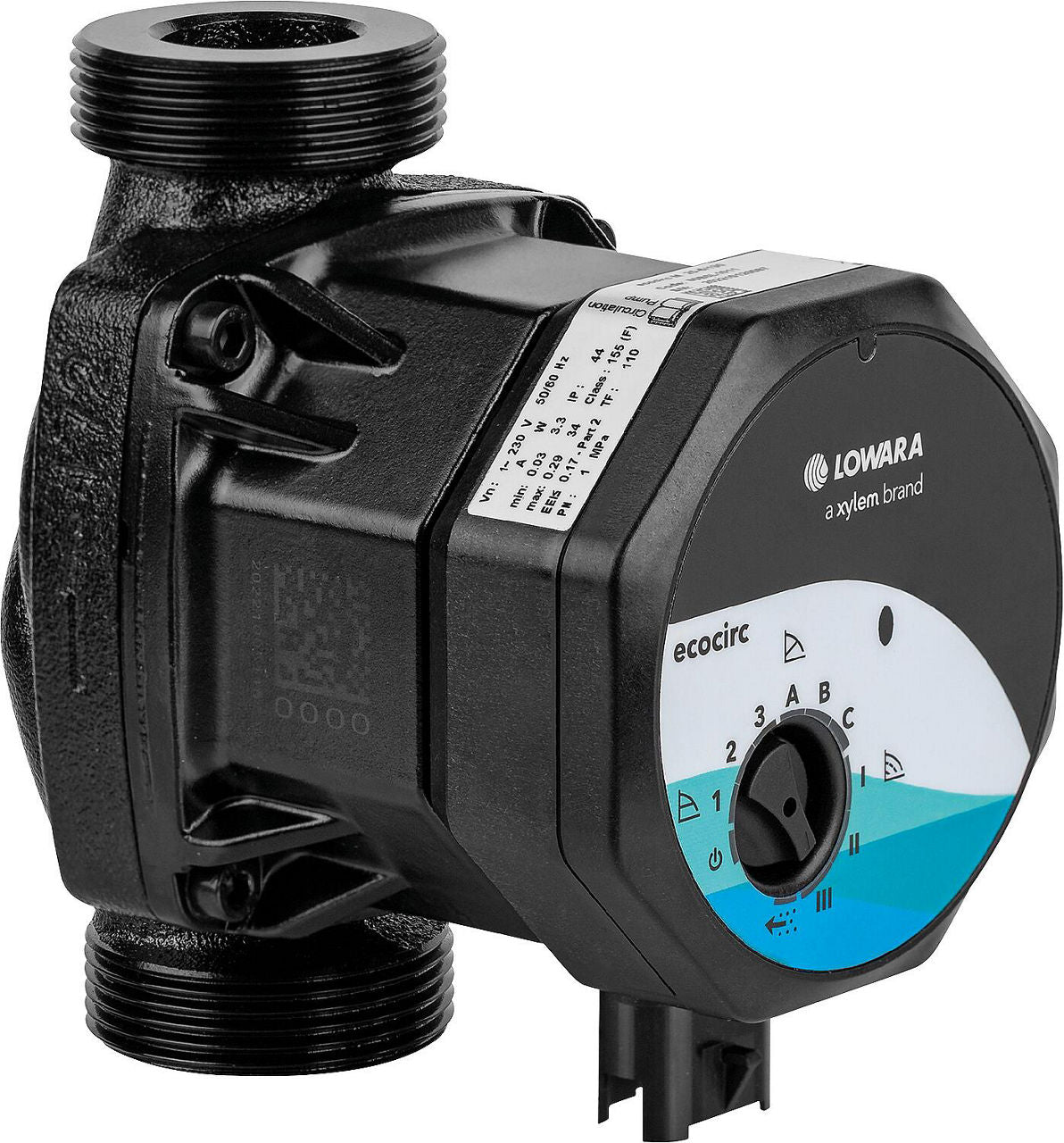

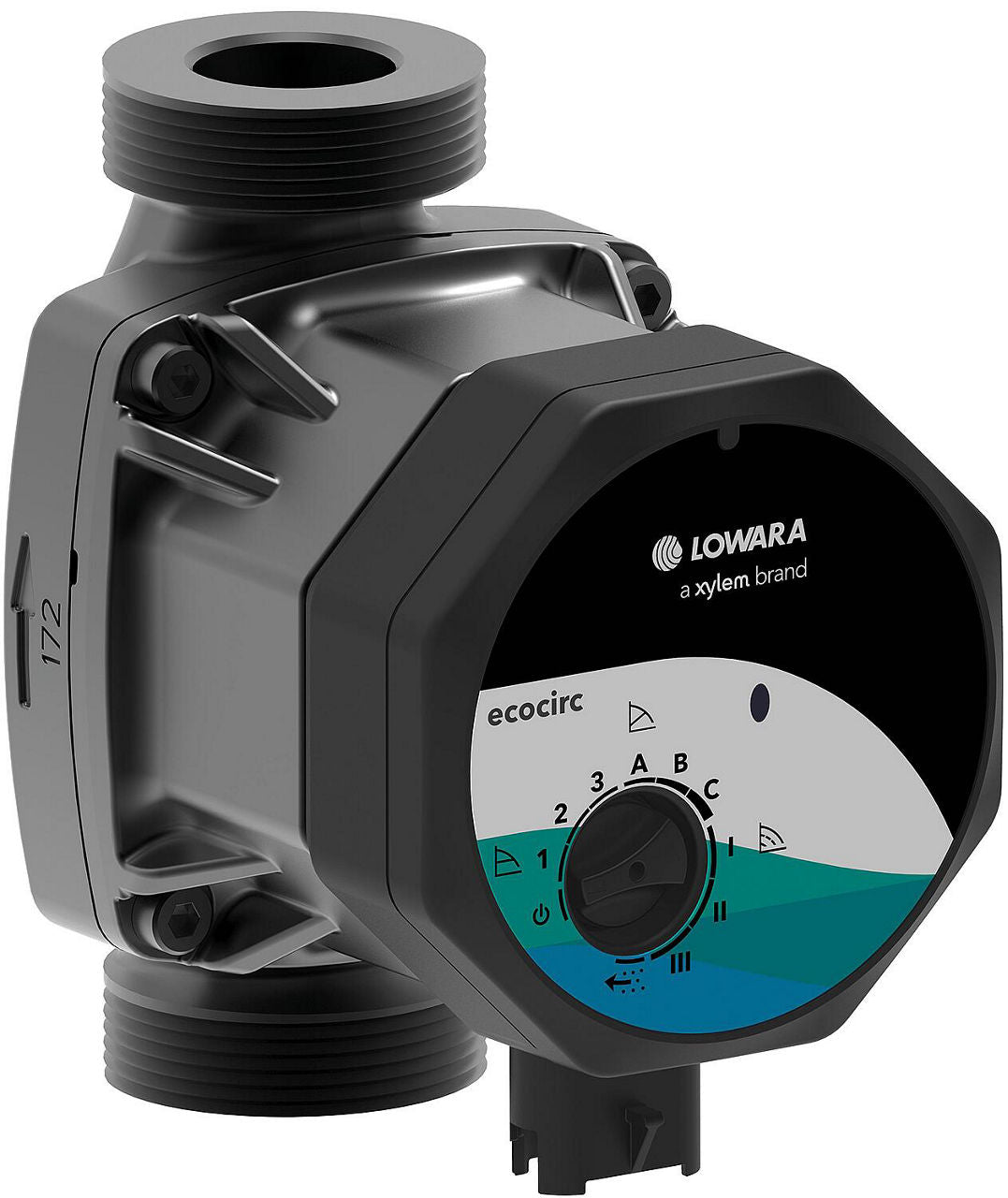

Lowara ecocirc heating circulator, 130 mm installation length
Lowara ecocirc heating circulator, 130 mm installation length
Lowara ecocirc heating circulator, 130 mm installation length
Lowara ecocirc heating circulator, 130 mm installation length

Lowara ecocirc heating circulator, 130 mm installation length

CHF 303.45 - CHF 339.60
/
Tax included

Select an option to add this to your cart.

  • 3 proportional curves
  • 3 constant pressure curves
  • 3 constant speeds
  • Purge function
  • Multicolor LED
  • With connection plug
  • Thermal insulation shell included
Technical data: Type S Type M Type L
• Max. delivery head: 4.0 m 6.0 m 8.0 m
• Max. flow rate: 2600 l/h 3100 l/h 4500 l/h
• Operating voltage: 1x 230 V/50-60 Hz
• Protection class: IP 44
• Fluid temperature range: -10°C to +110°C
• Max. operating pressure: 10 bar
• Pump housing material: Grey cast iron KTL coated
• Permitted pumped media: Heating water according to VDI 2035

Available variants

Technical details per variant

15-6 — Ref. 90 092 74

  • Energy Efficiency Index (EEI): 0.17
  • Power [W]: 34
  • Installation length [mm]: 130
  • Protection class (IP): IP44
  • Pressure class: PN 10
  • Nominal size: DN 15 (1/2")
  • Housing material: Grey cast iron
  • Max. fluid temperature (continuous operation) [°C]: 110
  • Type: ecocirc M 15-6
  • Male thread: DN 25 (1")
  • Connection: Male thread

25-6 — Ref. 90 092 76

  • Energy Efficiency Index (EEI): 0.17
  • Power [W]: 34
  • Installation length [mm]: 130
  • Protection class (IP): IP44
  • Pressure class: PN 10
  • Nominal diameter: DN 25 (1")
  • Housing material: Grey cast iron
  • Max. fluid temperature (continuous operation) [°C]: 110
  • Type: ecocirc M 25-6
  • External thread: DN 40 (1 1/2")
  • Connection: External thread

25-8 — Ref. 90 092 79

  • Energy Efficiency Index (EEI): 0.18
  • Power [W]: 60
  • Installation length [mm]: 130
  • Protection class (IP): IP44
  • Pressure class: PN 10
  • Nominal diameter: DN 25 (1")
  • Housing material: Grey cast iron
  • Max. fluid temperature (continuous operation) [°C]: 110
  • Type: ecocirc L 25-8
  • External thread: DN 40 (1 1/2")
  • Connection: External thread
Data sheets
Lowara ecocirc heating circulator, 130 mm installation length
Lowara ecocirc heating circulator, 130 mm installation length
CHF 303.45 - CHF 339.60
15-6 90 092 74
CHF 315.50 /each
June 25 90 092 76
CHF 303.45 /each
25-8 90 092 79
CHF 339.60 /each
Total:
