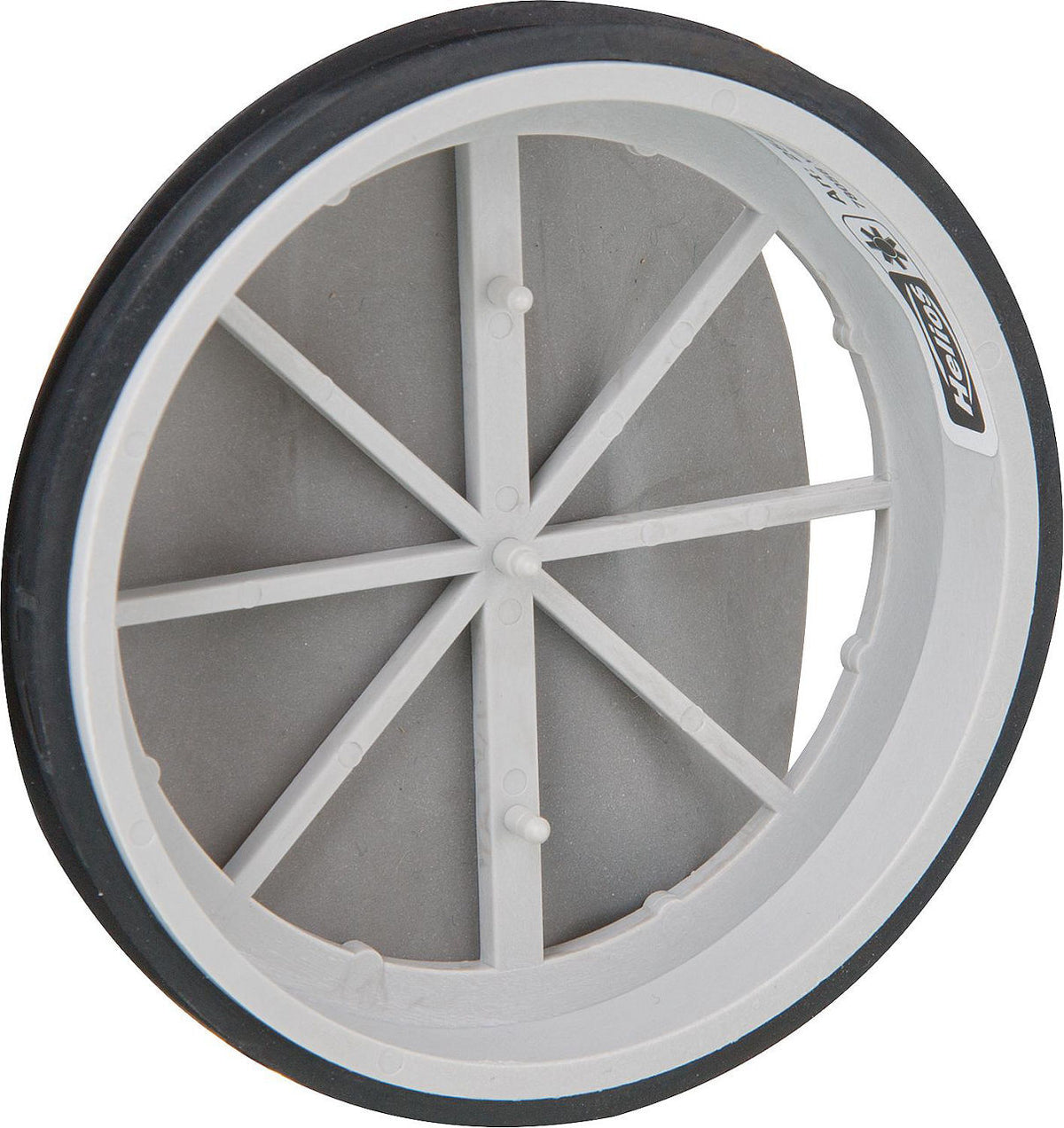

Capuchon d'obturation étanche Helios RVE pour tube à insérer
Capuchon d'obturation étanche Helios RVE pour tube à insérer
Capuchon d'obturation étanche Helios RVE pour tube à insérer

Helios RVE watertight blanking cap for insert tube

CHF 31.20 - CHF 61.75
/
Tax included

Select an option to add this to your cart.

Description

  • For ventilation systems in shafts or exposed
  • Formed parts: spot and roll seam welded
  • Sendzimir galvanized
  • Max. temperature: 100 °C
  • Ideal for subsequent installation
  • Plastic ring with circumferential lip seal and flexible rubber diaphragm for positive or negative pressure sealing
  • Damper supplied with two diaphragms for air speeds up to approx. 3.5 m/s or up to approx. 6 m/s.
  • Temperature range: –20 °C to +90 °C

Technical data

Working length [mm] 20
Material Steel, sendzimir galvanized
Connection Duct end
Version single-blade
Available variants
Model With pre-assembled seal Butterfly with rubber Type Reference
Nominal diameter 80 mm Yes Yes RVE 80 98 023 24
Nominal diameter 100 mm No No RVE 100 98 023 25
Nominal diameter 125 mm No No RVE 125 98 023 26
Nominal diameter 200 mm No No RVE 200 98 023 28
Data sheets
Capuchon d'obturation étanche Helios RVE pour tube à insérer
Helios RVE watertight blanking cap for insert tube
CHF 31.20 - CHF 61.75
Nominal diameter 80 mm 98 023 24
CHF 31.20 /each
Nominal diameter 100 mm 98 023 25
CHF 35.95 /each
Nominal diameter 125 mm 98 023 26
CHF 36.85 /each
Nominal diameter 200 mm 98 023 28
CHF 61.75 /each
