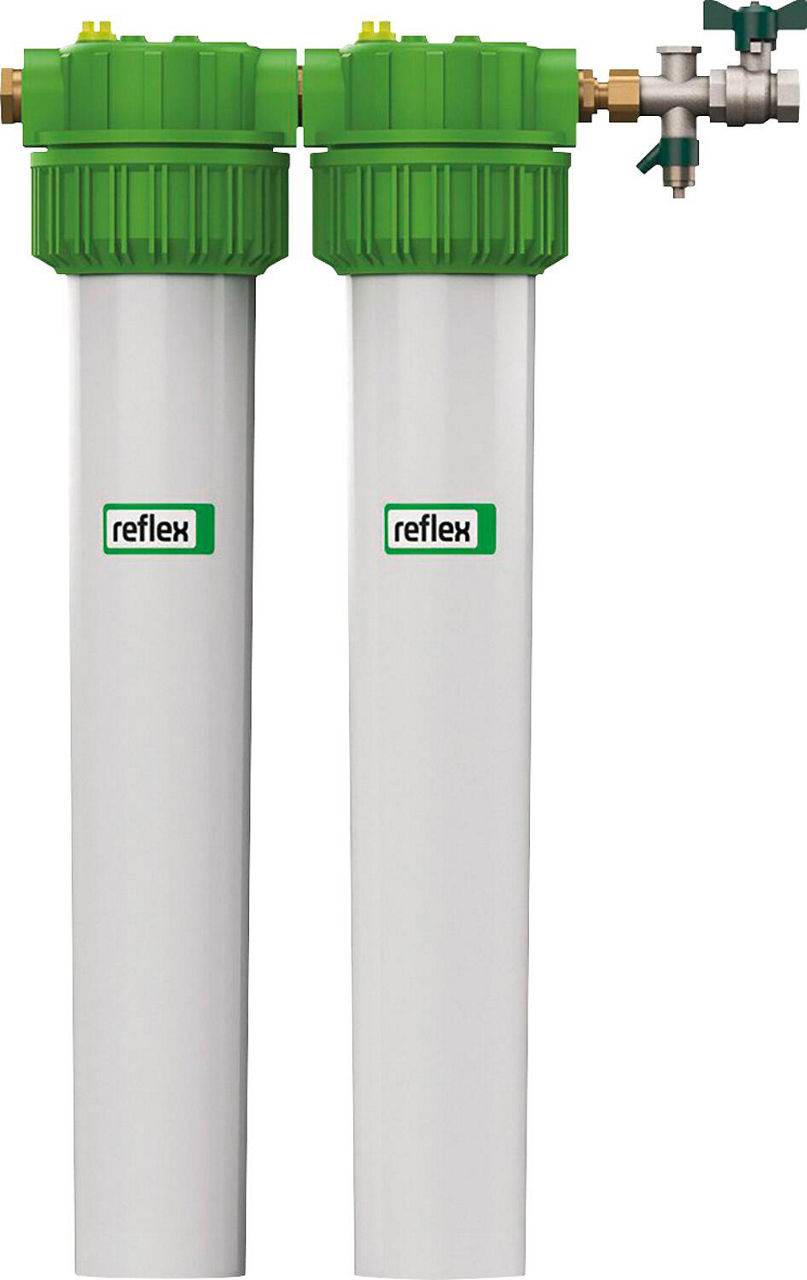

Boîtier de cartouche Reflex Fillsoft FG II
Boîtier de cartouche Reflex Fillsoft FG II
Boîtier de cartouche Reflex Fillsoft FG II

Reflex Fillsoft FG II cartridge housing

CHF 266.90
/
Tax included

Select an option to add this to your cart.

Description

  • Compact basic unit for the treatment of filling water
  • For the treatment of filling and top-up water using the ion exchange process for protection according to VDI 2035
  • The cartridge housing can optionally be used for water softening or demineralization in combination with corresponding cartridges (not included in delivery)
  • The empty housing is ready for assembly with wall mounts to be equipped optionally with:
  • Fillsoft green FSP 6000 softening resin cartridge for water softening (Order no. 90 131 65) or
  • Fillsoft Zero gray FZP 3000 mixed-bed resin cartridge for water demineralization according to VDI 2035 (Order no. 90 131 66)
  • Connection: DN 15 (1/2")
  • Operating temperatures: max. 40°C
  • Flow rate: max. 6 l/min
  • Operating pressure: max. 8 bar
  • Dimensions (H x W): 600 x 380 mm

Scope of delivery

  • Single polypropylene housing
  • Wall mounts
  • Flow restrictor
  • Ball shut-off valve with sampling tap

Technical data

Manufacturer part number 9125661
Datasheets
Boîtier de cartouche Reflex Fillsoft FG II
Reflex Fillsoft FG II cartridge housing
CHF 266.90
Standard 90 135 41
CHF 266.90 /each
Total:
