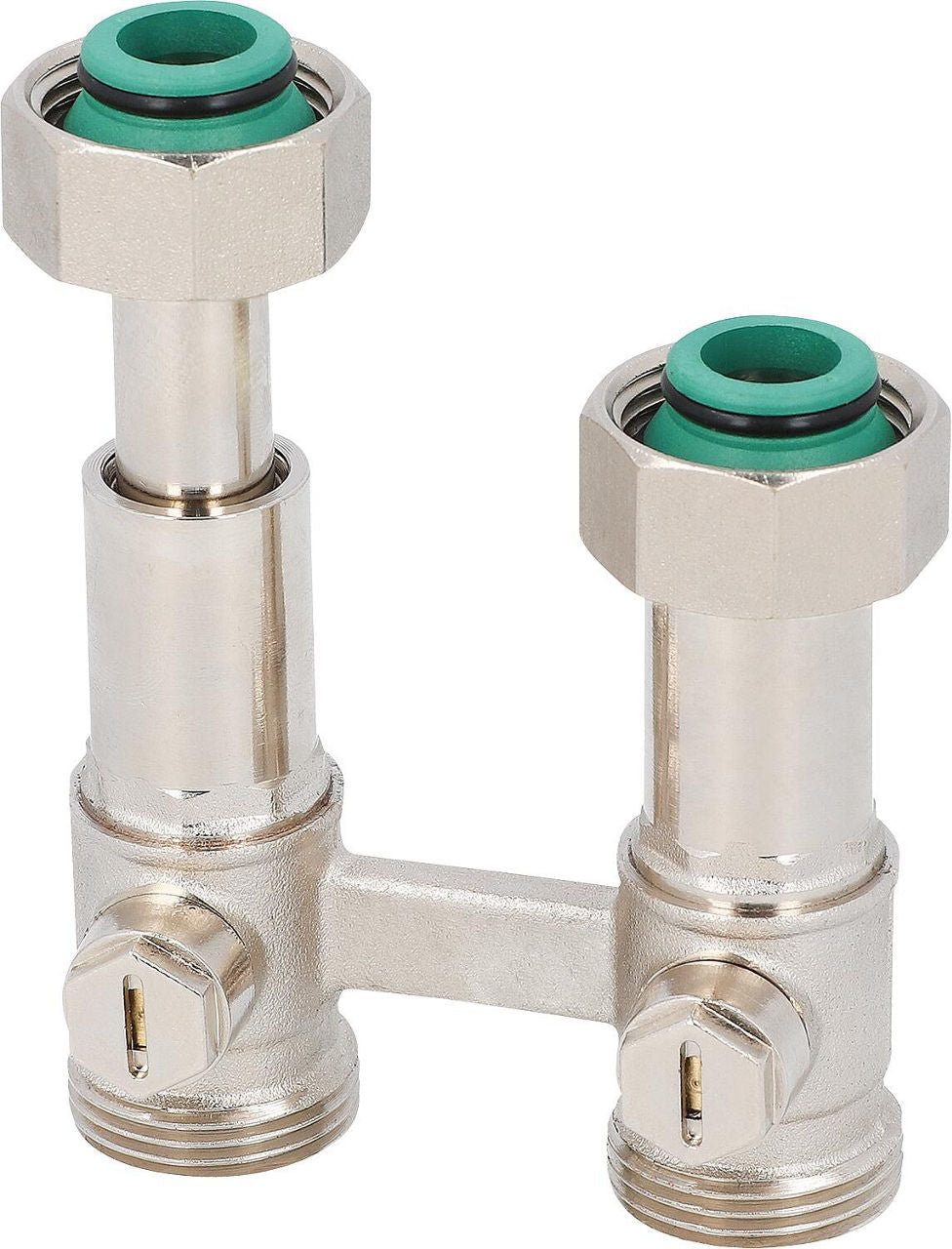

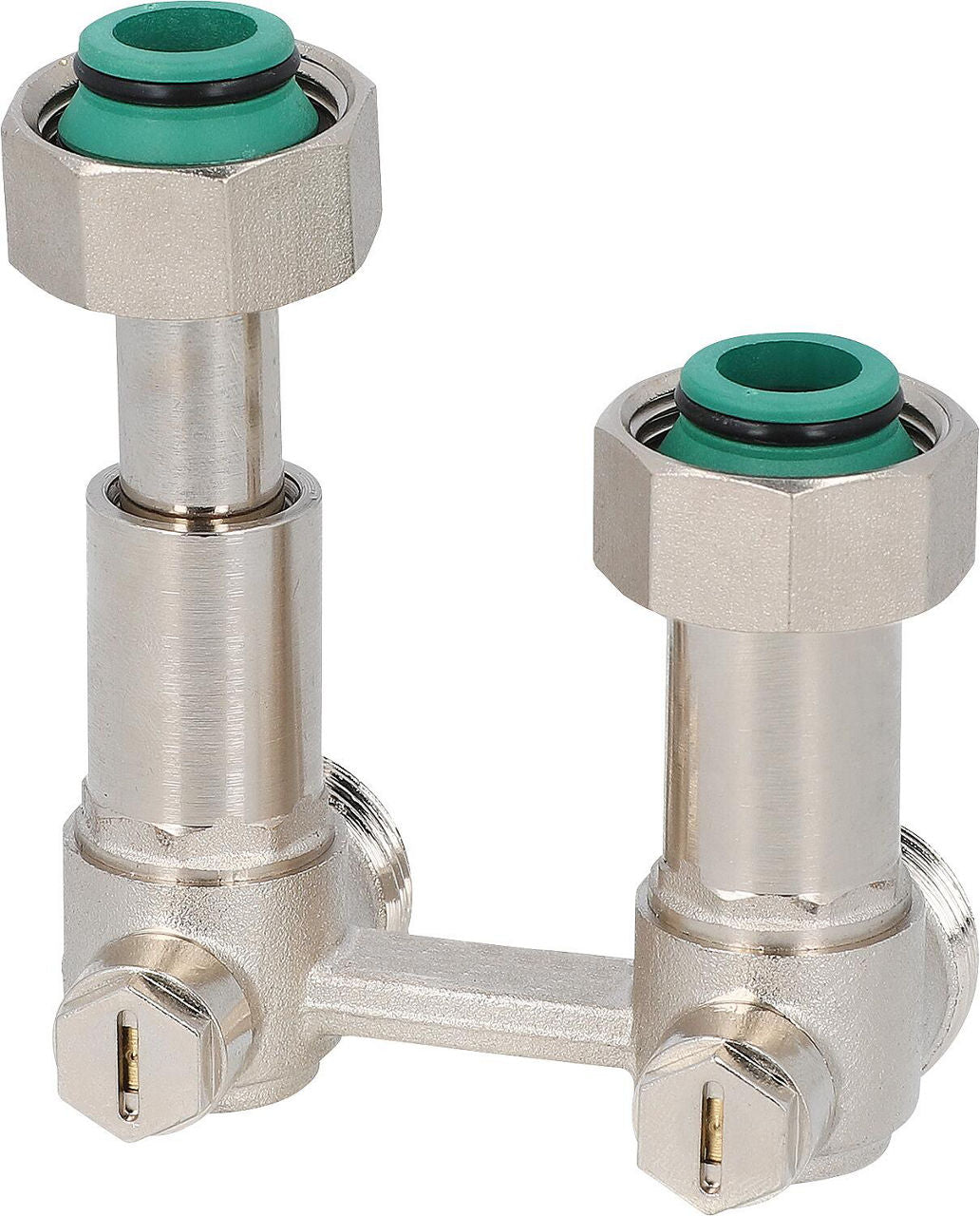

Two-pipe valve block with telescopic compensation, straight, radiator connection DN 20 (3/4") Eurocone

CHF 29.15 - CHF 29.45
/
Tax included

Select an option to add this to your cart.

Description

Double connections with integrated valve Exclusive for radiators, adjustable, EXCLUSIVE

  • Lockable telescopic valve
  • Height adjustable up to 25 mm
  • With self-sealing connection
  • Insert gasket to prevent slipping
  • Material: nickel-plated brass
  • DN 20 (3/4") Eurocone for compression fitting
  • Lock with stop
  • With tolerance compensation for easy installation
  • Center distance 50 mm
  • With conical part

Technical Data

Suitable for two-pipe system Yes
Suitable for one-pipe system No
Radiator connection Eurocone DN 20 (3/4") female
Pipe connection size DN 20 (3/4")
Center distance supply / return [mm] 50
Cross connection flow/return No
Surface protection nickel-plated
Bloc de robinet bitube à télescope de compensation, droit, raccord radiateur DN 20 (3/4") eurocône
Two-pipe valve block with telescopic compensation, straight, radiator connection DN 20 (3/4") Eurocone
CHF 29.15 - CHF 29.45
Law 90 090 92
CHF 29.15 /each
Set square 90 090 93
CHF 29.45 /each
