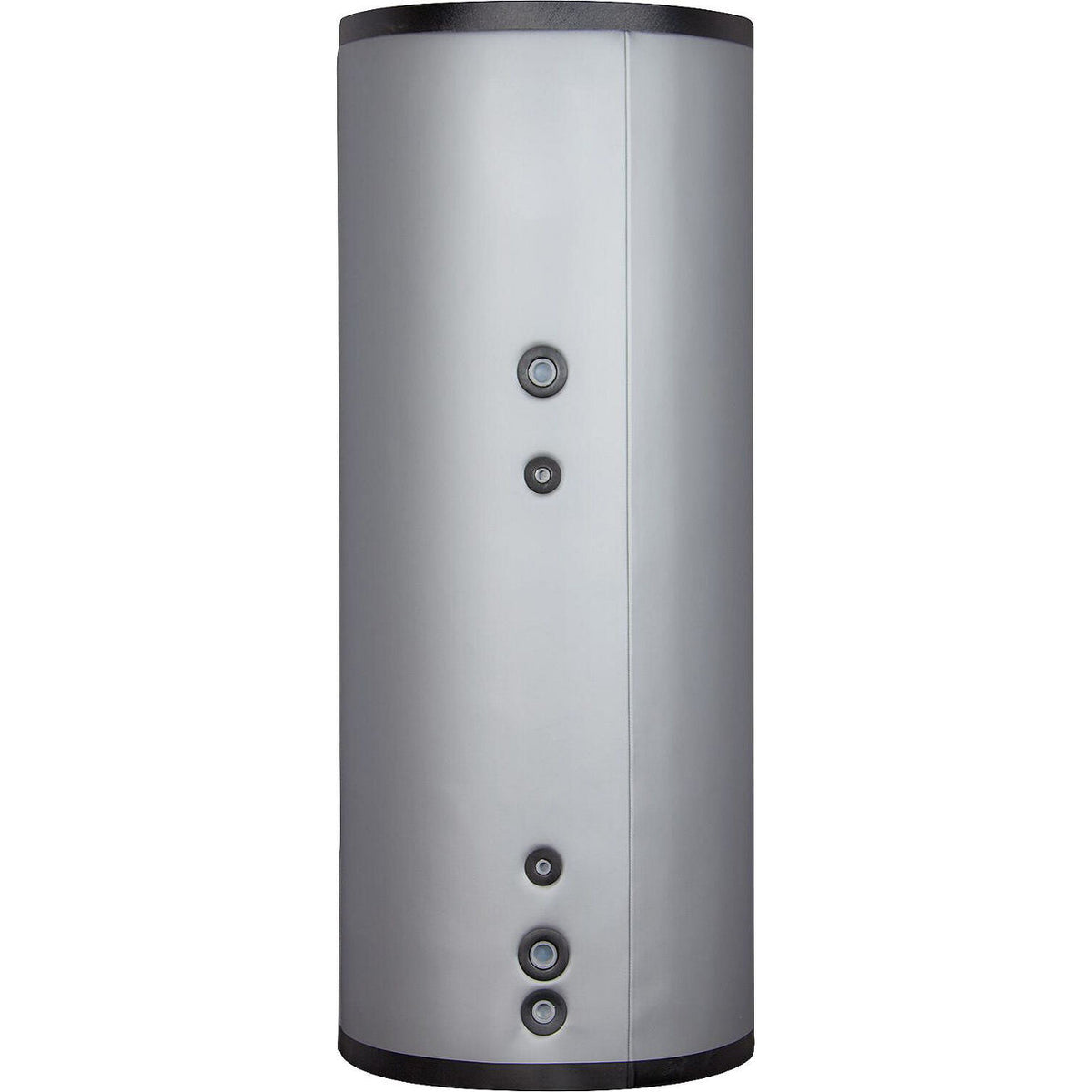

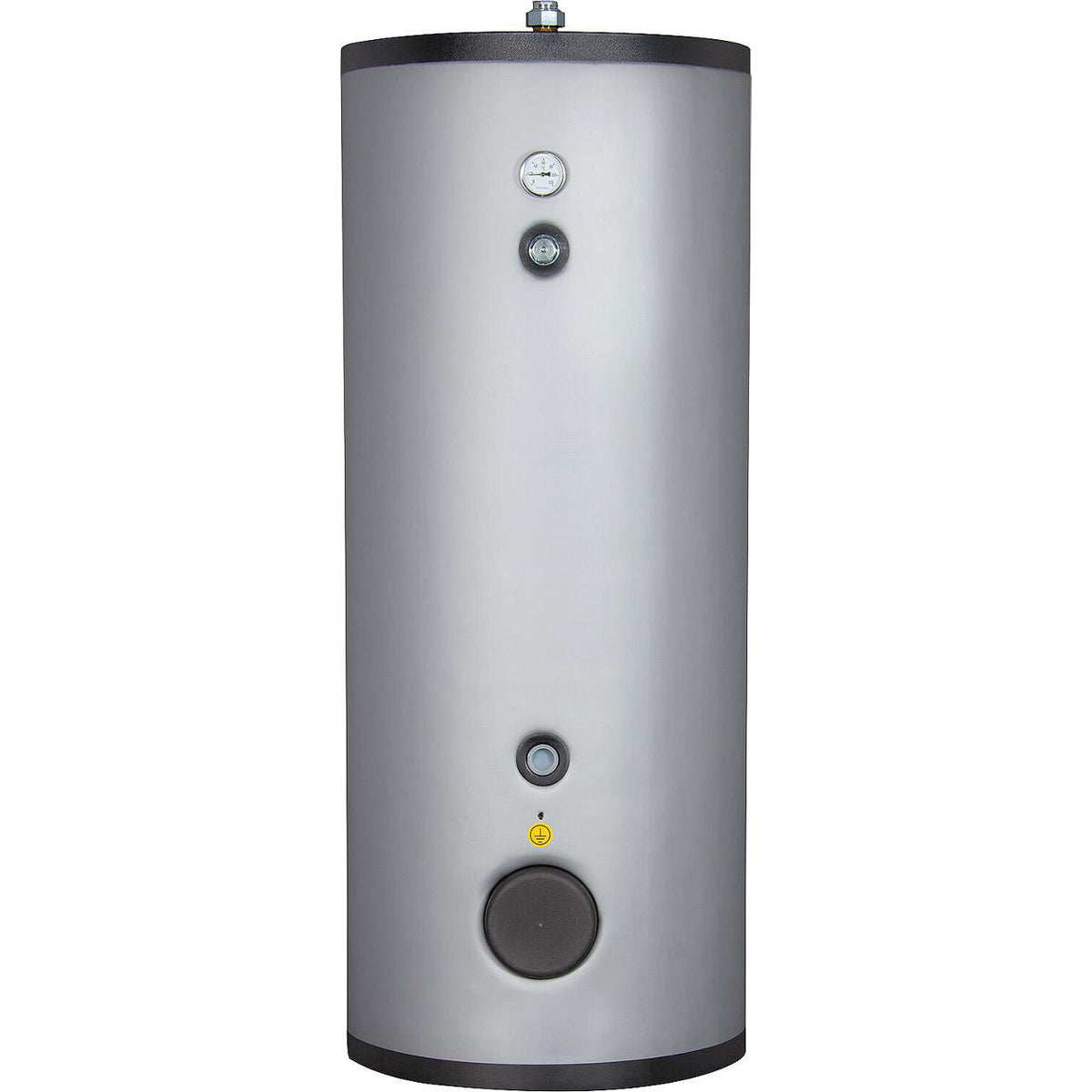

Ballon d'eau chaude sanitaire pour pompe à chaleur WP2V émaillé, 2 échangeurs

Ballon d'eau chaude sanitaire pour pompe à chaleur WP2V émaillé, 2 échangeurs

Domestic hot water tank for heat pump WP2V enamelled, 2 heat exchangers

CHF 1,720.70 - CHF 5,537.75

Tax included

Select an option to add this to your cart.

Configuration : 415 L · Ø750 mm · H1410 mm : 586 L · Ø750 mm · H1910 mm : 750 L · Ø1050 mm · H1750 mm : 932 L · Ø1050 mm · H2110 mm : 1474 L · Ø1260 mm · H2115 mm

Features

S 235 Jr quality steel tank
Exterior: with anti-rust paint
Interior: enamelled according to DIN 4753.3
Tank operating pressure: max. 8 bar
Operating temperature: max. 95°C
Insulation:
Up to 600 L: 50 mm in-situ foamed rigid foam, energy efficiency class B
From 800 L: 130 mm removable soft foam, with imitation leather casing, energy efficiency class C
Heat exchanger (permanently welded):
Operating pressure: max. 12 bar
Double spiral smooth tube heat exchanger
Magnesium anode for additional corrosion protection
Additional DN 40 (1 1/2") sleeve for installing an electric heating element
Inspection flange
Annual anode maintenance recommended

Technical data

SKU	Model	Capacity	Diameter	Ø with insulation	Ø without insulation	Overall height	Height	Tilting dimension	Ø inspection flange	Max. temperature	Max. operating pressure	Lower heat exchanger surface (solar)	Upper heat exchanger surface (auxiliary)	Energy class
97 033 21	WP2V-400	415 L	750 mm	750 mm	—	1410 mm	1410 mm	1610 mm	180 mm	95 °C	8 bar	1.2 m²	3.0 m²	B
97 015 45	WP2V-600	586 L	750 mm	750 mm	—	1910 mm	1910 mm	2065 mm	180 mm	95 °C	8 bar	2.0 m²	5.0 m²	B
97 015 46	WP2V-800	750 L	1050 mm	1050 mm	790 mm	1750 mm	1750 mm	1745 mm	180 mm	95 °C	8 bar	2.0 m²	5.2 m²	C
97 015 47	WP2V-1000	932 L	1050 mm	1050 mm	790 mm	2110 mm	2110 mm	2095 mm	180 mm	95 °C	8 bar	3.3 m²	6.0 m²	C
97 033 22	WP2V-1500	1474 L	1260 mm	1260 mm	1000 mm	2115 mm	2115 mm	2145 mm	290 mm	95 °C	8 bar	3.6 m²	7.5 m²	C
