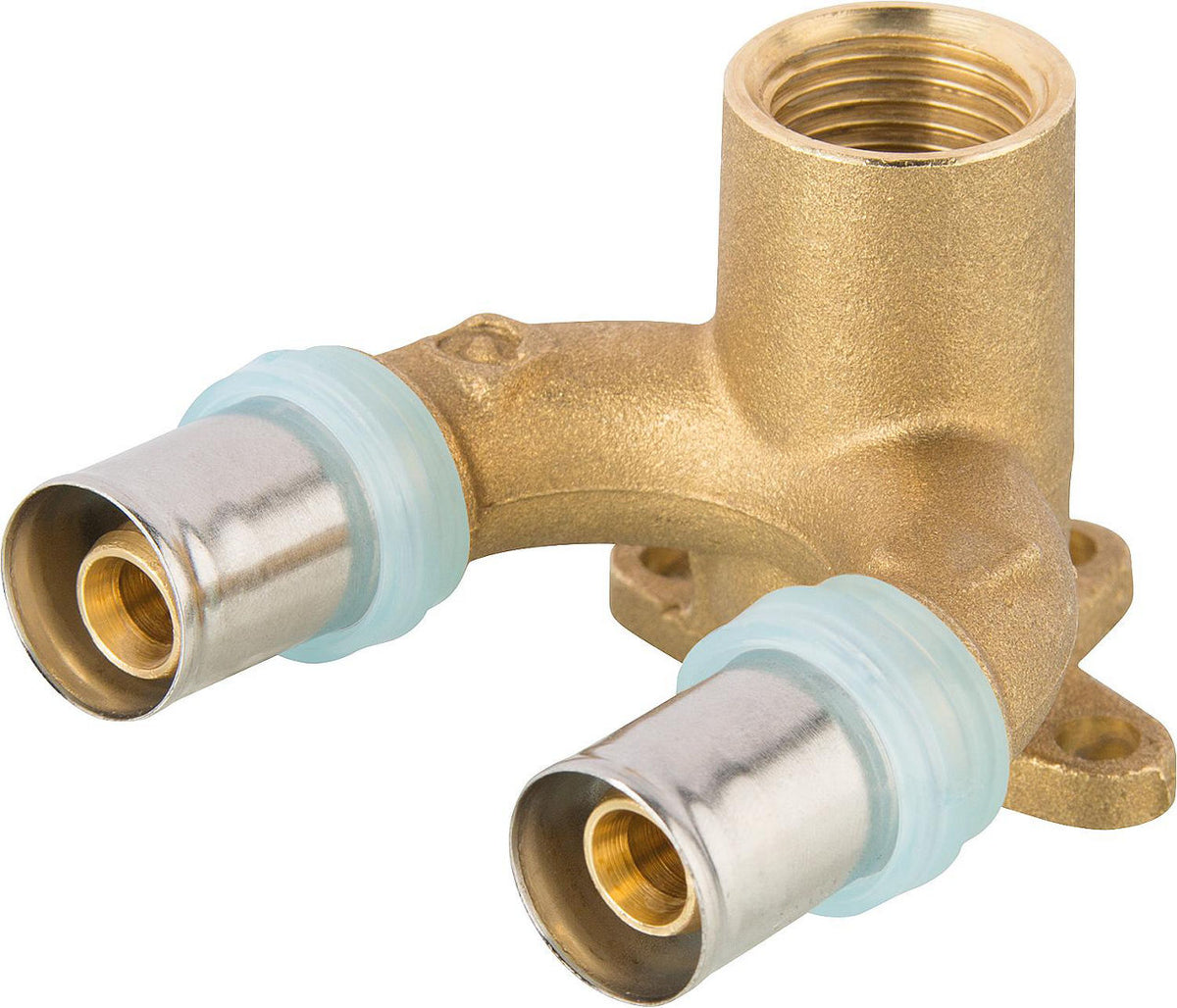

Double evenes wall bracket for multilayer pipe

CHF 17.95 - CHF 18.20
/
Tax included

Select an option to add this to your cart.

Evenes press fitting for sanitary, heating, and oil-free compressed air systems. Drinking water compliant according to UBA positive list. Fitting body made of high-quality brass.

Features

  • Press fitting system for sanitary and heating installations
  • Compatible with oil-free compressed air
  • Drinking water compliant according to UBA positive list
  • Brass fitting body
  • TH contour profile
  • Double wall connection
  • 1/2" threaded connection

Technical data

Number of connections 3
Brand Evenes
Connection 1 Press sleeve
DVGW seal 16x2 mm - 1/2" : No · 20x2 mm - 1/2" : Yes
Suitable for drinking water according to UBA positive list 16x2 mm - 1/2" : No · 20x2 mm - 1/2" : Yes
Connection 2 16x2 mm - 1/2" : internal thread · 20x2 mm - 1/2" : Press sleeve
Dimensions 16x2 mm - 1/2" : 16 x 2 - DN 15 (1/2") - 16 x 2 mm · 20x2 mm - 1/2" : 20 x 2 - DN 15 (1/2") - 20 x 2 mm
Connection 3 16x2 mm - 1/2" : Press sleeve · 20x2 mm - 1/2" : internal thread
With flat seal No
Tapered No
Design 1 piece
Max. fluid temperature (continuous operation) [°C] 95
Max. working pressure [bar] 10
Available variants
  • SKU 90 043 95 : 16x2 mm - 1/2"
  • SKU 90 043 96 : 20x2 mm - 1/2"
Applique murale double evenes pour multicouche
Double evenes wall bracket for multilayer pipe
CHF 17.95 - CHF 18.20
Applique murale double evenes pour multicouche
16x2 mm - 1/2" 90 043 95
CHF 18.20 /each
Applique murale double evenes pour multicouche
20x2 mm - 1/2" 90 043 96
CHF 17.95 /each
