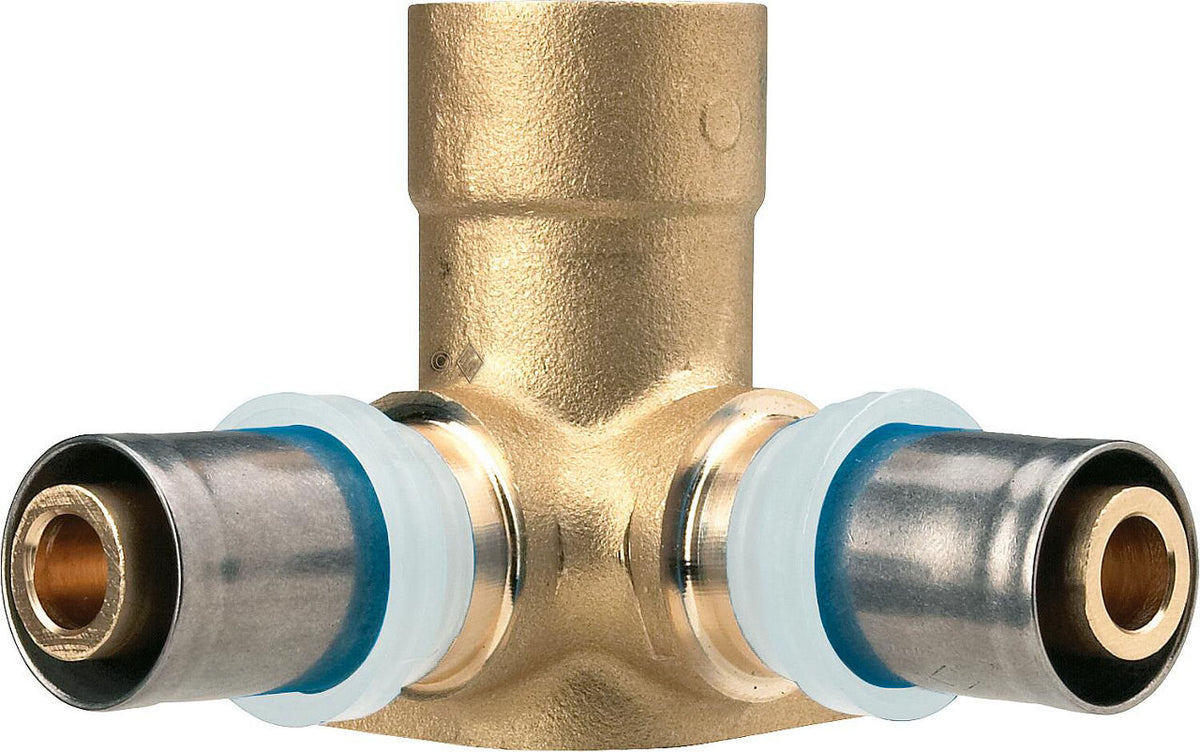

Applique murale double courte à sertir evenes multicouche
Applique murale double courte à sertir evenes multicouche
Applique murale double courte à sertir evenes multicouche

Double short crimp wall plate evenes multi-layer

CHF 19.15 - CHF 19.50
/
Tax included

Select an option to add this to your cart.

Press fitting system for sanitary, heating and oil-free compressed air installations. Drinking water compliant according to UBA positive list. Brass fitting body with TH contour.

Features

  • Press fitting for multi-layer pipe
  • Short double wall plate with 1/2'' central thread
  • Quality brass fitting body
  • Drinking water compliant according to UBA positive list
  • TH contour for crimping
  • For sanitary, heating and oil-free compressed air installations

Technical data

Number of connections 3
Brand Evenes
Connection 1 Compression sleeve
DVGW Seal Yes
Suitable for drinking water according to UBA positive list Yes
Connection 2 Internal thread
Dimensions 16x2 mm - 1/2": 16 x 2 - DN 15 (1/2") - 16 x 2 mm · 20x2 mm - 1/2": 20 x 2 - DN 15 (1/2") - 20 x 2 mm
Max. fluid temperature (continuous operation) [°C] 95
Connection 3 Compression sleeve
Flat seal No
Conical No
Max. operating pressure [bar] 10
Available variants
  • SKU 90 062 82: 16x2 mm - 1/2"
  • SKU 90 062 83: 20x2 mm - 1/2"
Data sheets
Applique murale double courte à sertir evenes multicouche
Double short crimp wall plate evenes multi-layer
CHF 19.15 - CHF 19.50
Applique murale double courte à sertir evenes multicouche
16x2 mm - 1/2" 90 062 82
CHF 19.50 /each
Applique murale double courte à sertir evenes multicouche
20x2 mm - 1/2" 90 062 83
CHF 19.15 /each
